After the StateUPS utility is set up, install the software supplied by the UPS vendor. Before beginning installation, make sure that the interface cable is connected to the UPS:

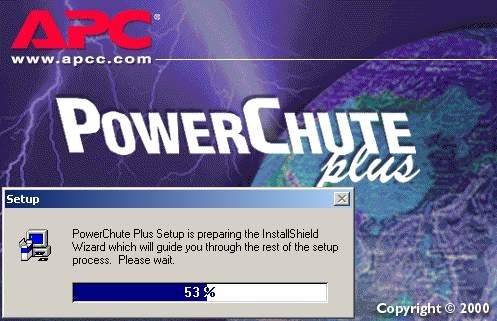

  1.  To start the installation process, start the file pc521.exe. Installation starts.

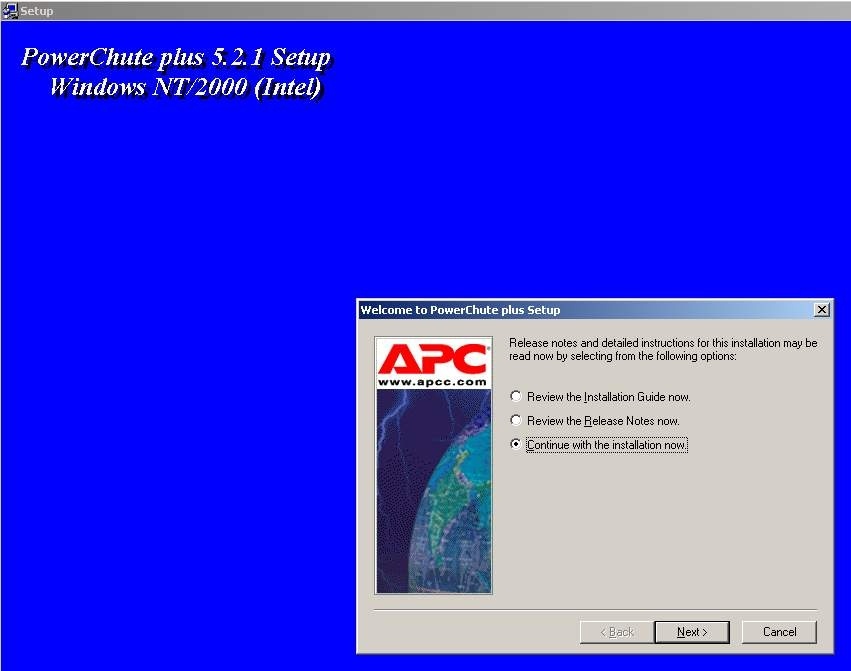

  2. On the following wizard page, select the option Continue with the installation now and click the Next button.

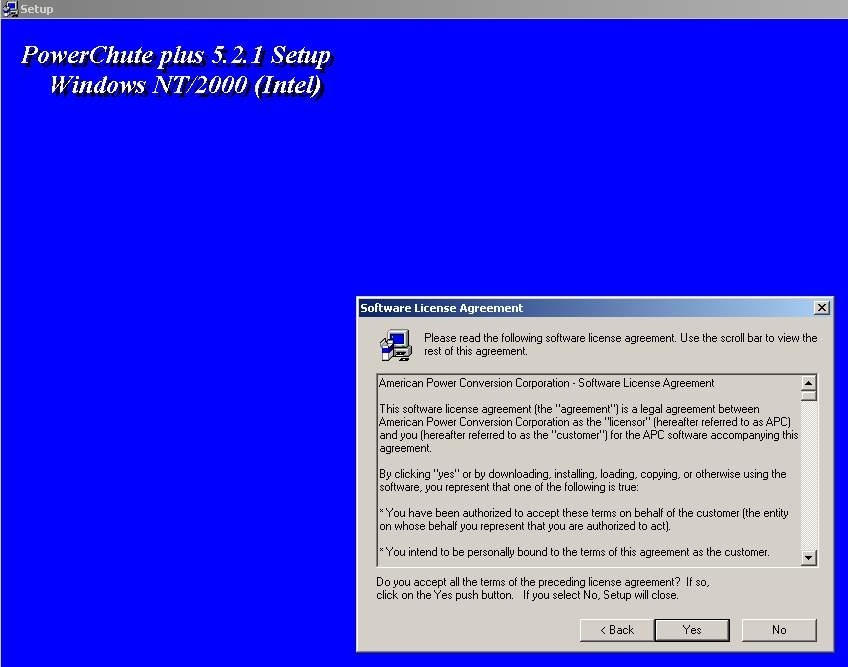

  3. Accept the end-user license agreement.

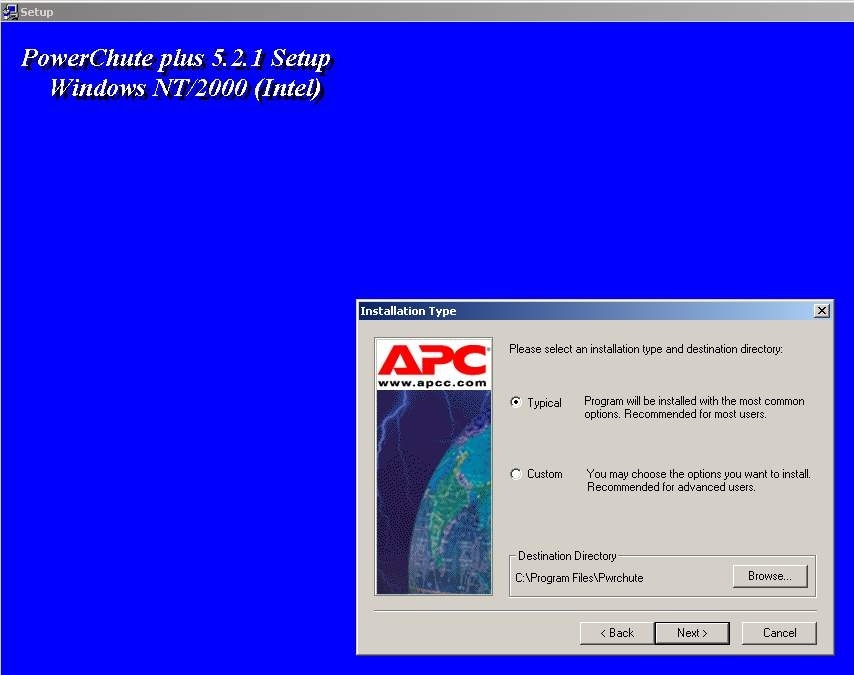

  4. On the following page of the wizard select the Typical installation type and indicate the path at which you want to install the software.

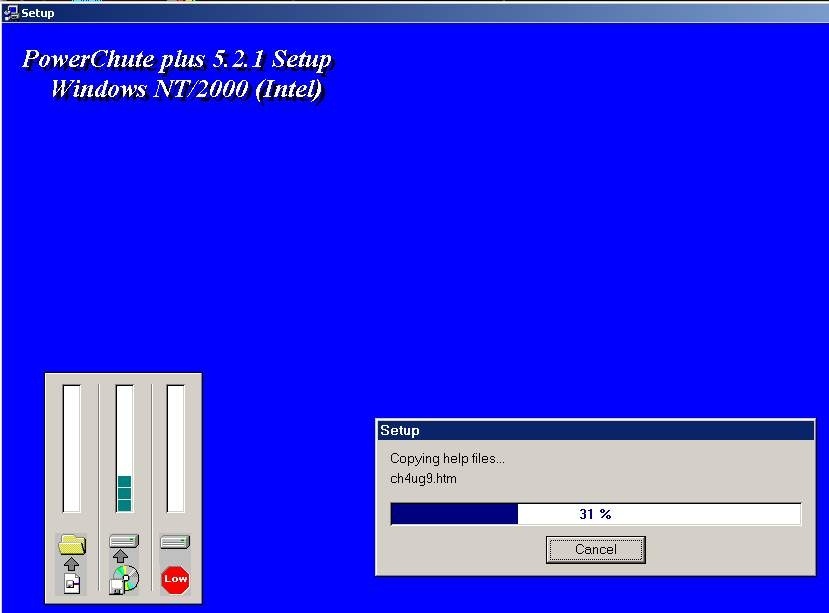

  5. The necessary files will be copied.

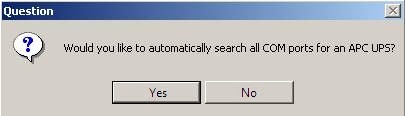

  6. You are asked whether you want the program to automatically detect the COM port on which the UPS is located. Click the Yes button.
  7. Search begins.

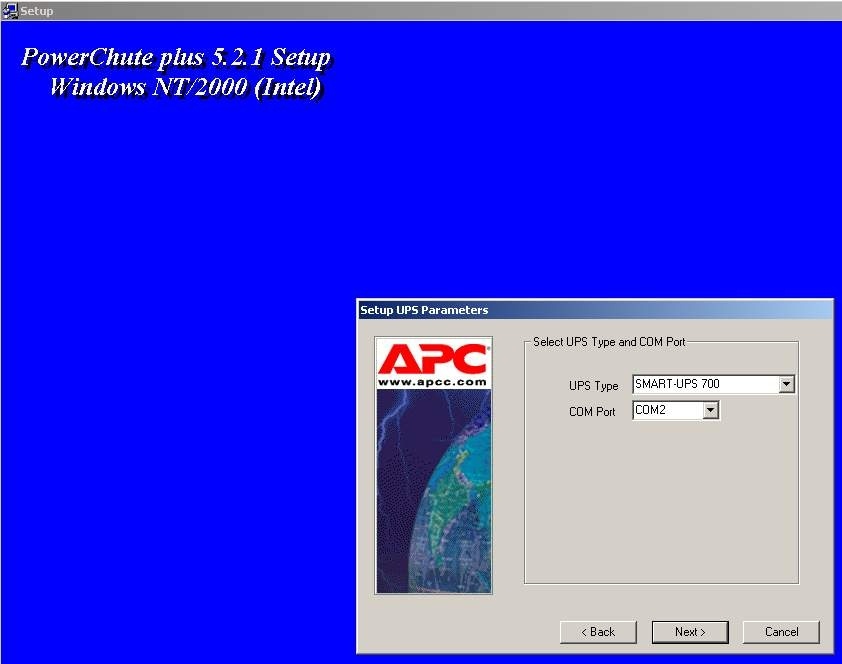

  8. After the search ends, the program shows the type of UPS that it found and the corresponding COM port. Click the Next button.
  9. Then clear the Enable PowerChute plus remote monitoring check box and click the Next button.
  10. The two following wizard pages complete the installation process.

The StateUPS utility installation completed.
