To install ATM-Intellect in the ATM-Intellect Workstation configuration, do the following:

  1. Start the file setup.exe from the installation kit. The installation wizard informs that the installation process has begun.
  2. You are prompted to start installation. Click the Next button.
  3. In the License agreement window read the terms of the End-User License Agreement . Set the switch into the I accept the terms in the license agreement position and press Next.

  4. Set the ATM-Intellect Workstation installation type. Click Next.

  5. A dialog box to for choosing installation type will be displayed. If Intellect software is installed as a service and ATM-Intellect Workstation is to be installed as a service as well, set the Install ATM Intellect as a service checkbox. Click Next.

  6. A dialog box to configure database connection will be displayed. Select the database server name and set up the connection parameters.

    Note.

    In the Select database Server from the drop-down list field specify the "127.0.0.1" value instead of computer name or "(local)" value, e.g. "127.0.0.1\SQLEXPRESS". Otherwise ATM-Intellect Workstation will lose connection with its local database when the network cable is disconnected.


  7. In the Database field specify the name of the database or select it in the list of databases, which are created in the server, and click <<.

    Note.

    The default name of the database is MonitorSSTV and its files are located in the SQL Server folder.


    Click Next.
  8. Click Install in the next dialog box.
  9. Installation begins.

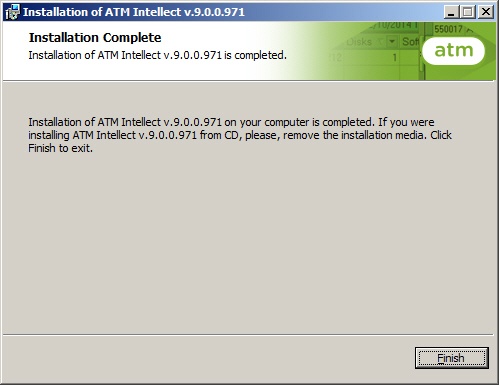

  10. After the final installation tasks are completed, the wizard informs that the software has been successfully installed. Click Finish.

ATM-Intellect Workstation installation is completed.
