To install ATM-Intellect in the Additional workplace configuration, do the following:

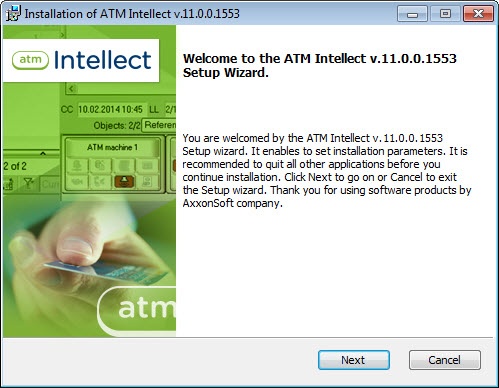

  1. Start the file setup.exe from the installation kit. The installation wizard informs that the installation process has begun. You are prompted to start installation. Click the Next button.

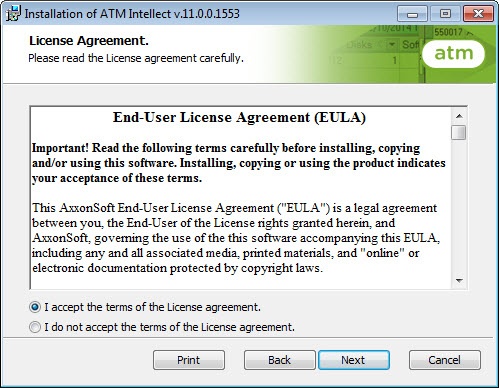

  2. In the License agreement window read the terms of the End-User License Agreement . Set the switch into the I accept the terms in the license agreement position and press Next.

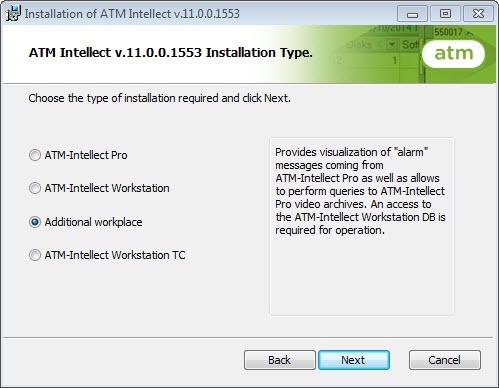

  3. Set the Additional workplace installation type. Click Next.

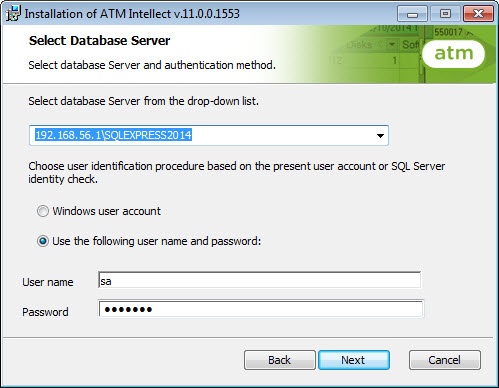

  4. A dialog box to configure database connection will be displayed. Select the database server name and set up the connection parameters.

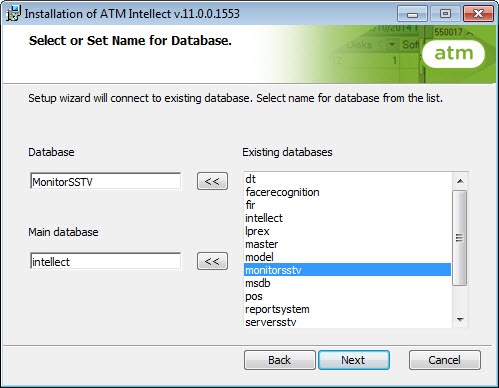

  5. In the Database field specify the name of existing database or select it in the list of databases, which are created in the server, and click <<.

    Note

    The default name of the database is MonitorSSTV.

    Click Next.

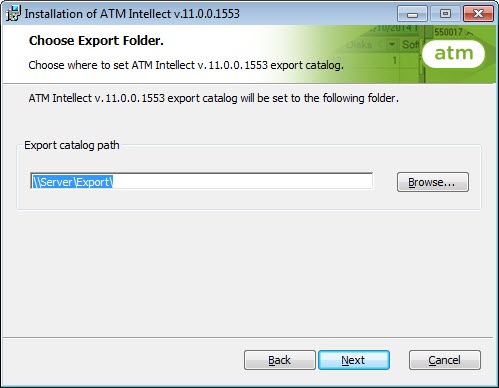

  6. Specify the export catalog path. This catalog will contain video data received from ATM-Intellect Pro.

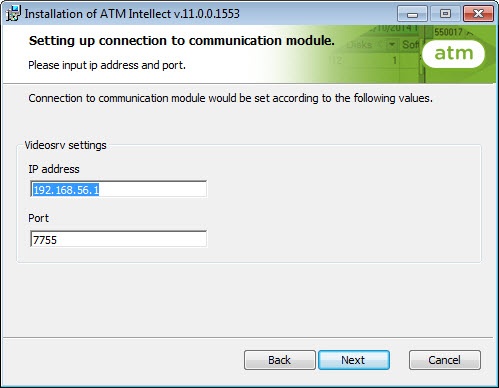

  7. Specify IP-address and port for connection to ATM-Intellect Workstation communication module videosrv.

    Note.

    It is strongly recommended to change default Export catalog path and IP address on steps 6-7. Otherwise, after the installation is completed, it will be necessary to configure Additional workplace (see Additional workplace configuration).

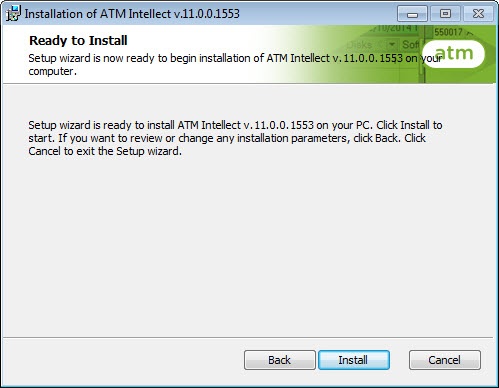

  8. Click Install in the next dialog box.

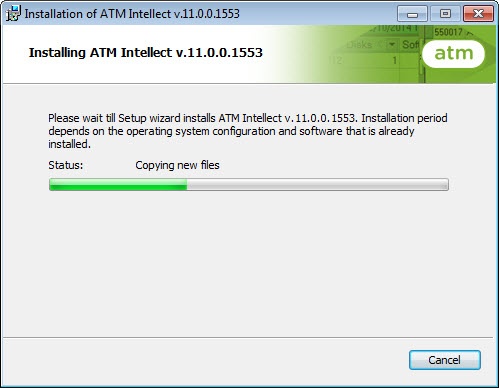

  9. Installation begins.

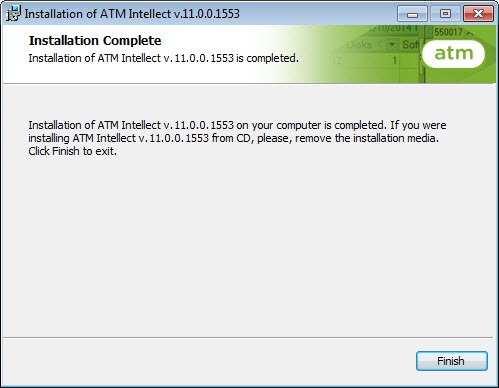

  10. After the final installation tasks are completed, the wizard informs that the software has been successfully installed. Click Finish.

Additional workplace installation is completed.
