Important!

To be able to view video from all cameras of the selected Surveillance Object, it is necessary to set the Viewing live video from all cameras (add.) checkbox when configuring the ATM Monitoring interface object (for details, see Configuring the ATM Monitoring interface object).

To view video from all cameras, it is necesary to select the All cameras of Surveillance Object item in the object's Video image playback context menu (see Viewing live and archive video from objects).

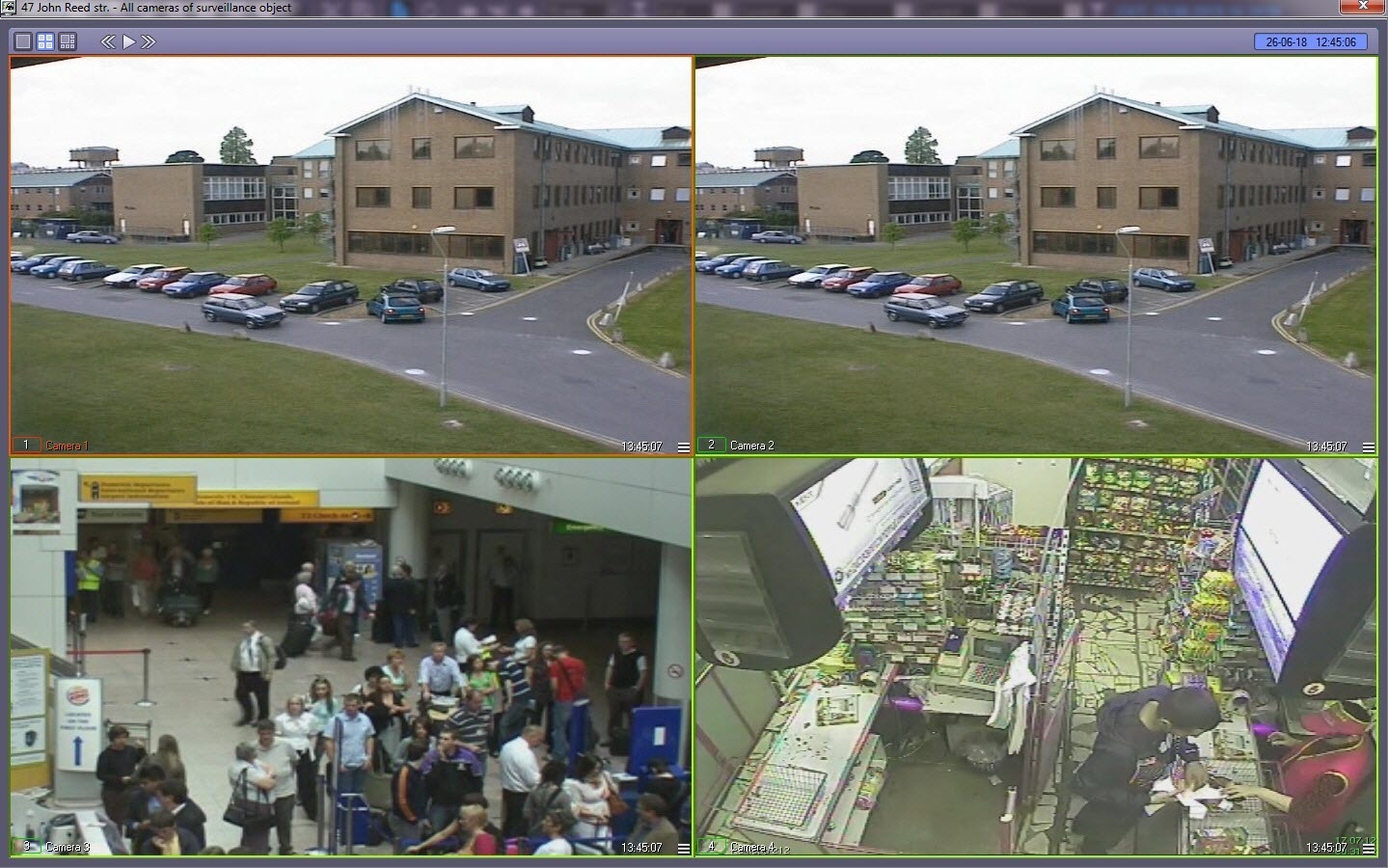

As a result the dialog box with viewing tiles for all cameras of the selected Surveillance Object will be displayed.

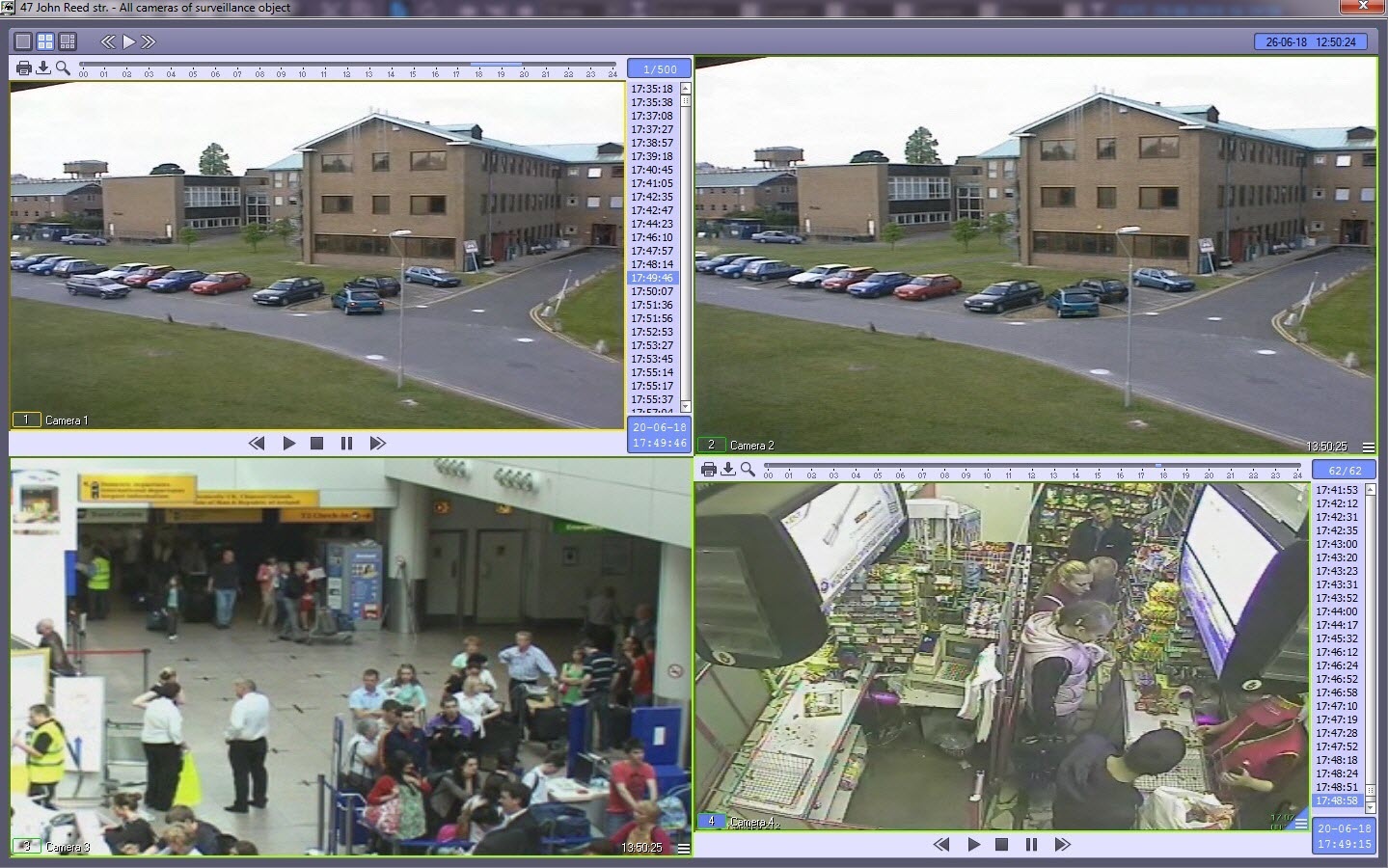

Use the  button in the bottom right corner of the viewing tile to enter the archive mode and the  button to exit the archive mode.

Live video and archive playback control functions are similar with the ones used in the Video monitor in Intellect, except it is not possible to switch between viewing tiles and start manual and auto paging. Find details on these functions in Intellect software package. Operator’s Guide. The latest version of this document is available in AxxonSoft documentation repository.
