To configure the connection with ATM-Intellect Pro, do the following:

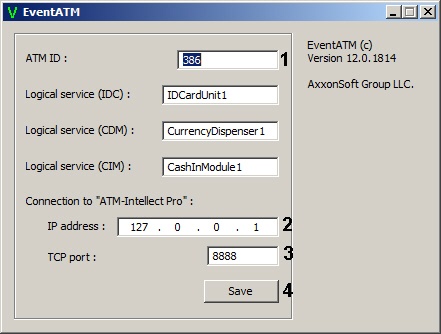

  1. In the ATM ID field specify identification number of the ATM. This value should match the "ID" value in the settings of ATM-Intellect Pro (1).

  2. In the IP address specify the IP address of the computer on which Intellect and ATM-Intellect Pro are installed (2). If they are installed on the ATM's control computer, you can leave the default value unchanged (127.0.0.1).
  3. In the TCP port field specify the TCP port on which ATM-Intellect Pro expects connections from ATM Event Capture. This value should match the TCP port (UPS-SCS) value in the settings of ATM-Intellect Pro (3).
  4. To save settings, click the Save button (4).

Configuring the connection to the ATM-Intellect Pro is completed.
