To configure the ATM Monitoring reports object, proceed as follows:

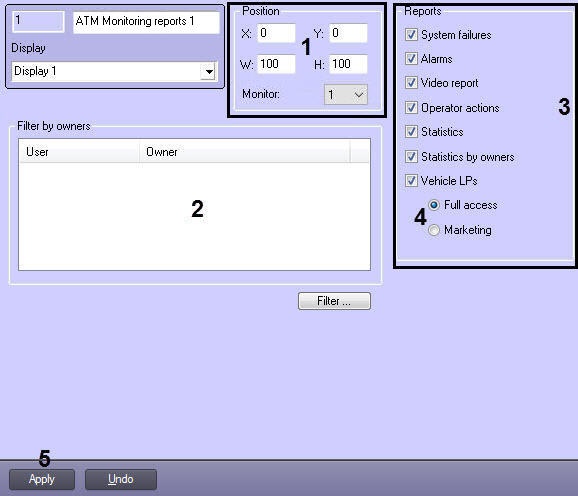

  1. Select the ATM Monitoring reports object in the object tree. The settings panel of the object is displayed on the right of the System settings dialog box.
  2. From the Monitor drop-down list (1), select the number of the physical monitor, which coordinates should be specified. Specify the ATM Monitoring reports window position coordinates on the screen of the selected monitor.
  3. Set owners filter similar to the one for the ATM Monitoring object (2), see Configuring the ATM Monitoring object.
  4. By default, all reports are available for the operator. To hide some of the reports, uncheck the boxes next to them in the Reports group (3).
  5. Select the type of access to the Vehicle LPs reports (4):
    1. Full access: all Vehicle LPs report types are available.
    2. Marketing: only the average time span at the gas station and number of vehicles reports are available, and the Vehicle LP field is restricted to three letters and % symbol.
  6. Click Apply (5).

Configuration of the ATM Monitoring reports object is completed.
