To configure time synchronization and control of connection with ATM-Intellect Workstation proceed as follows:

  1. Go to the ATM-Intellect Pro object setting panel.

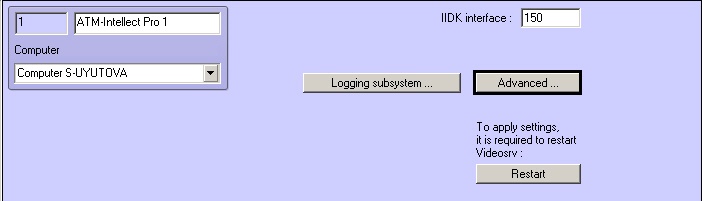

  2. To view a dialog box with more configuration options, click the Advanced ... button.
  3. Configure synchronization in the following way:
    1. Set the Enable checkbox (1) if it’s necessary for ATM Intellect Pro to synchronize its local time with the time on the specified source (ATM, self-service terminal, or any other protected object).
    2. Fill in the Threshold (sec) field if in case the local time in ATM Intellect Pro varies from the time on the source by more than the amount indicated, the time to be synchronized (2). ATMs made by Smart Card Service can send commands to ATM Intellect Pro to force synchronization (in which case the threshold value is ignored).
    3.  If ATM Intellect Pro is used for multiple objects, select in the Source drop-down list which Surveillance Object will serve as the synchronization source (3).
  4. Configure control of connection to ATM-Intellect Workstation:
    1. Set the Enable checkbox if it is necessary for ATM Intellect Pro to ping ATM Intellect Workstation i.e. to include a command inside a technical status packet to confirm receipt of the packet (4). If ATM Intellect Workstation does not respond to four test messages in a row, the software decides that there are problems in the data link between ATM Intellect Pro and ATM Intellect Workstation. The actions that the software takes based on this decision depend on the Restart communication channel (client mode) setting.
    2. Set the Restart communication channel (client mode) checkbox (5) if when ATM Intellect Workstation does not respond to four technical status packets in a row, the problematic data link are to be restarted, unless this task is reassigned to other software (such as the module IP2X25.exe).
  5. Press OK (6).
  6. Click Restart button on the ATM Intellect Pro settings panel to apply the settings.

Configuring time synchronization and control of connection is completed.
