To configure list of used video cameras do the following:

  1. Go to the Surveillance Object object setting panel.

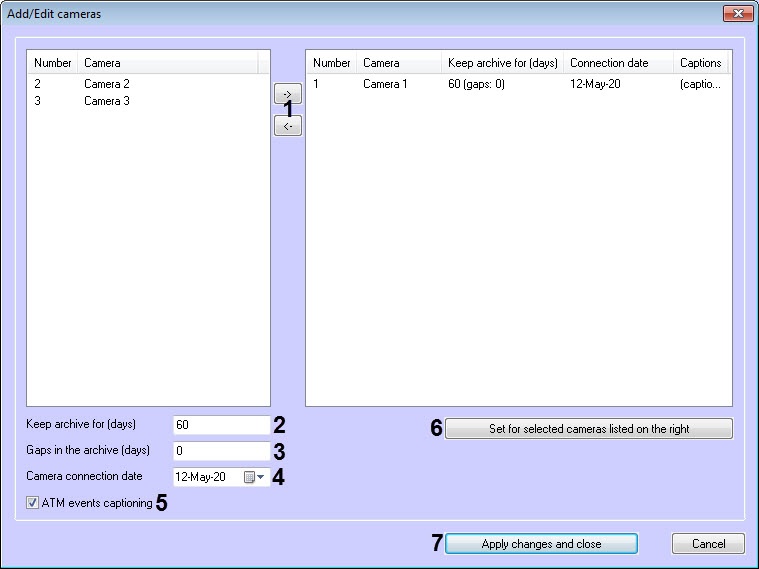

  2. Click the Cameras… button (1). The Add/Edit cameras dialog box opens.
  3. Move cameras from the list on the left to the list on the right with  and  buttons (1).
  4. Select cameras in the list on the right.
  5. In the Keep archive for (days) field, specify the storage time of the video archive in days (2).
  6. In the Gaps in the archive (days) field, specify the number of days on which the video archive is not recorded, because non-working days are taken into account in the working schedule (3).

  7. In the Camera connection date field, specify the date the camera was connected to the system (4).

  8. If titles displaying is required, set the ATM events captioning checkbox (5).

  9. Click the Set for selected cameras listed on the right button (6).

  10. Click Apply changes and close button (7). The selected cameras will be added to the list on the configuration panel of the Surveillance Object object.
  11. Click the Apply button on the configuration panel of the Surveillance Object object.

Note.

Video camera and Captioner ID numbers must be whole integers.

Note

Cameras will be automatically removed from the list in the following cases:

  • The Camera object or its parent Video Capture Device object is removed from the Intellect hardware list;
  • The Camera object or its parent Video Capture Device object is set to Disabled mode;
  • In a distributed configuration, the Camera object is moved to a Video Capture Device object located on another computer;
  • In a distributed configuration, the Video Capture Device object, which the Camera object belongs to, is moved to another computer.

Configuring cameras list is completed.
