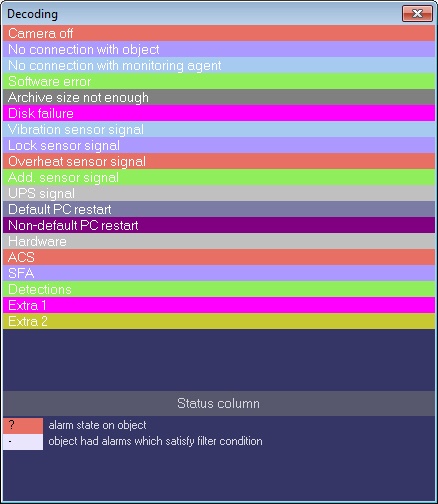

Alarm situations in the Log panel are shown in a table with colored rows. The color of each alarm corresponds to the alarm type. The color assignments can be viewed by clicking the  button (Information about symbols). The information window opens.

Vertical bars correspond to short alarms; horizontal bars correspond to long alarms (device operability).

Note.

Alarm types are described in the Types of alarms section.

The length of bars is determined by the beginning and end (duration) of the alarm, in accordance with the selected scale. The scale is measured as the time interval for a single column.
