The ATM Event Capture utility captures the following card reader and dispenser events:

  1. Card inserted;
  2. Card taken by client;
  3. Card captured by ATM;
  4. Cash delivery;
  5. Client took out the cash;
  6. ATM took out the cash;
  7. Safe door opened;
  8. Safe door closed.

The ATM Event Capture utility also captures the following cash-in events:

  1. Cash operation;
  2. Cash acceptance is completed;
  3. Cash delivery to the client;
  4. Cancellation: cash delivery;
  5. Client took out the cash;
  6. ATM took the cash;
  7. Safe door opened;
  8. Safe door closed.

The following information is overlaid on the image, as captions:

  1. date and time;
  2. ATM ID;
  3. number of client card;
  4. event.

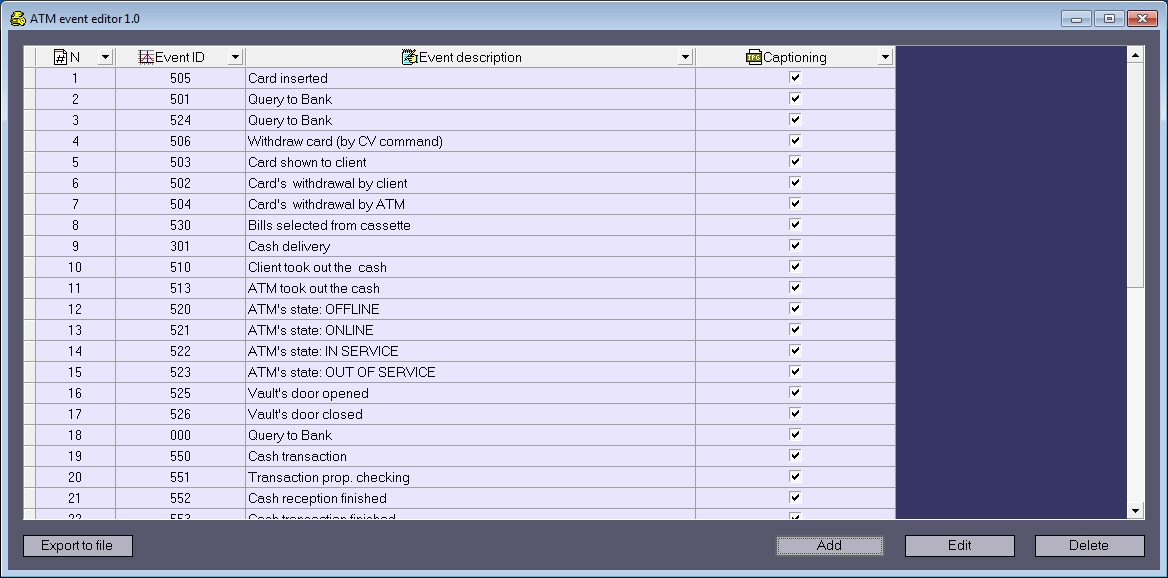

If it is necessary that a certain event is not overlaid as captions on the image, then on the computer where the ATM-Intellect Pro is installed, select Start>All Programs>Intellect>ATM Intellect >ATM Event Editor. In the window that appears, edit the corresponding entry by unchecking the corresponding check box in the Captioning column. Then restart the ATM Intellect.
