The logging subsystem enables configuration of the logging level of ATM-Intellect Pro.

To configure the logging subsystem proceed as follows:

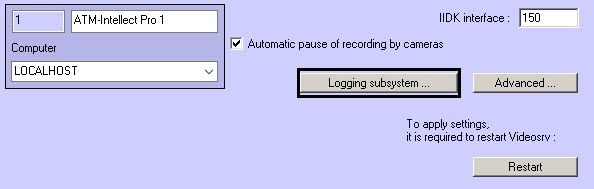

  1. Go to the ATM-Intellect Pro object setting panel.
  2. Click the Logging subsystem... button.
  3. In the opened dialog box configure the following parameters:

    1. Auxiliary characters. Set the checkbox to log auxiliary characters on the transport level.
    2. Alarm events. Set the checkbox to log alarm events (activation of vibration sensor, temperature sensor, or forceable lock opening).
    3. System status. Set the checkbox to log events related to the system status.
    4. Intellect messages. Set the checkbox to logs system health messages from Intellect. The information is saved in a folder inside the software installation folder, in the file video.log.
    5. Client service. Set the checkbox to log the performance of financial transactions on the ATM.
    6. Archiving period (h).  Allows archiving the log file over the given time period (in hours). Archives are saved in the DATA subfolder, in the following format: namelog_yymmddhhmmss.gz, where
      1. namelog is the name of the archived log file;
      2. yy is the year of archive creation;
      3. mm is the month of archive creation;
      4. dd is the day of archive creation;
      5. hh is the hour of archive creation;
      6.  mm is the minute of archive creation;
      7. ss is the second of archive creation.
    7. File size (MB). Sets the size of the log file (in megabytes) after which the file will be archived. This setting overrides the value in the Archiving period (h) field.
    8. Keep archives for (months). Sets the term of storage for the archived log file, in months (from 1 to 24). After this term expires, the archives are deleted.

The main log file is stored in the folder in which the software was installed, in the file vsrvYYMMDD.log, where YY is the year, MM is the month and DD is the day.

Setting up logging subsystem is completed.
