The Search in archive interface object is configured as follows:

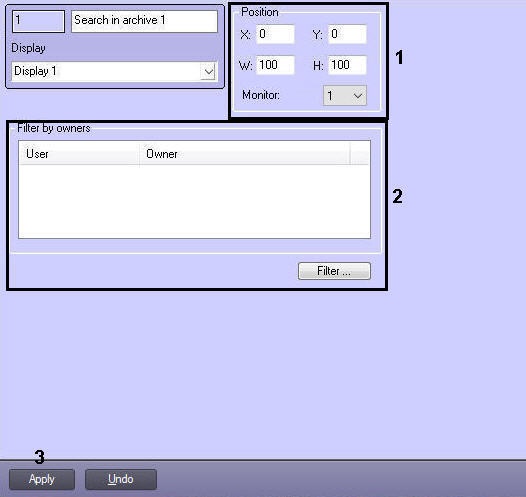

  1. Select the Search in archive object in the tree. In the right part of the System settings dialog box, the settings panel for this object will be displayed:
  2. From the Monitor drop-down list (1), select the number of the physical monitor, which coordinates should be specified. Specify the Search in archive window position coordinates on the screen of the selected monitor.
  3. Set up a filter by owners (2) by analogy with the ATM Monitoring interface object — see Configuring the ATM Monitoring object.
  4. Click the Apply button (3).

When you select the Display object on the basis of which the Search in archive object was created in Intellect, the Search in archive interface window will be visualized (see Search in archive).
