An export directory is automatically created on the ATM Intellect Workstation to save all requested frames and video fragments. By default, the export directory is located at DISK:\Export\, where DISK is the drive on which the operating system is installed. You can change the path to this directory using the ExportPath registry key (see Registry keys reference guide). Then the ATM Monitoring reports and Search in archive modules can work with this data storage.

If necessary, you can configure saving frames and video fragments in the ATM Intellect database (MonitorSSTV) instead of the export directory. For this purpose, it is necessary to set the string parameter of the KeepVideoDataInBase registry key equal to the number of days of storage in the database (see Vertical solutions). The data is stored in the video_data table.

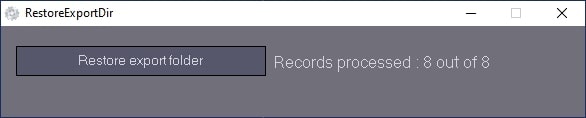

To restore data from the ATM Intellect database to the export directory, use the RestoreExportDir.exe utility that is installed on the ATM Intellect Workstation at the <Intellect installation directory>\Vhost\SYSTEM path. To start restoring data, click the Restore export folder button.
