You can view both live video and archives from objects on the Control Panel:

  1. Viewing video from a specific camera.
  2. Viewing video from all cameras created at the ATM-Intellect Pro.
  3. Viewing video from all cameras of the selected Surveillance Object.
  4. Creating user layouts and playing back video from selected cameras added to the Surveillance Object.

Note.

Information on how to select cameras for live video and archives playback on the Control Panel can be found in Configuring video cameras list section.

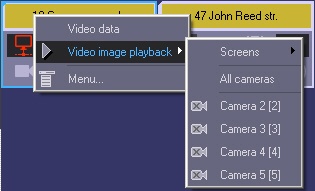

To select the mode for viewing live video and archive, right-click the area with object name.

A context menu will appear with the Video image playback item, in which you can select:

  • Camera name for viewing video from a separate camera;
  • All cameras to view video from all cameras created on the ATM-Intellect Pro side;
  • All cameras of Surveillance Object to view video from all cameras of the selected Surveillance Object;
  • Displays to select a user layout.

Find more details on how to play back video image in the corresponding sections.

Note

  • The All cameras menu item is available if the user has no restrictions on viewing some cameras — see Configuring the ATM Monitoring object.
  • The All cameras of Surveillance Object menu item is available if the Viewing live video from all cameras (add.) option is enabled in the ATM Monitoring interface object setting.
  • The Video image playback menu item is available only for objects that have connected to ATM Intellect Workstation software for the first time. Before that, this menu item may not be displayed.

The list of cameras will match the list of cameras enabled in the settings for the object. Camera names in the context menu as well as IDs specified in the square brackets correspond to those on the ATM-Intellect Pro.

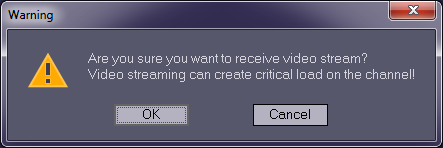

If the ATM-Intellect Workstation software have the corresponding setting, then when the camera is selected for viewing live video the warning will be displayed saying that transmission of video can create critical load on the channel. If it is really necessary to view live video, click OK in the Warning dialog box. To cancel viewing live video, click Cancel.

Attention!

It is possible to restrict the Operator’s access to the camera's functional menu and its items, to the CamMonitor buttons, and to the CamMonitor control via the keyboard and mouse (for details, see Registry keys reference guide, for details about working with the registry, see Working with Windows OS registry).
