To configure captions, you must create a Captioner object for each camera on which you want to overlay captions.

Attention!

If multiple Captioner have been created for a single camera, ATM Intellect Pro will use the Captioner that has the lowest ID number.

To configure the font and location of captions on the screen do the following:

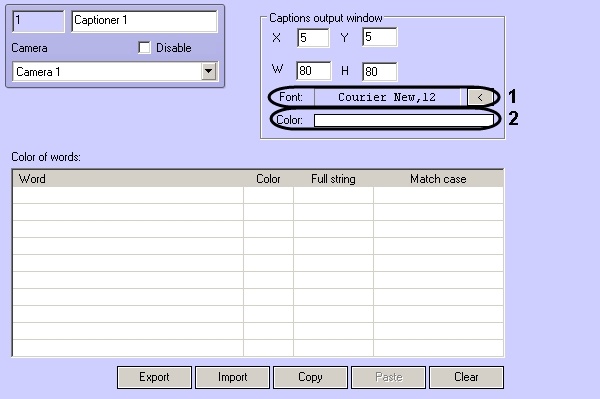

  1. In the settings tree, left-click the corresponding Captioner object. On the right side of the screen, a configuration panel appears for the Captioner object.

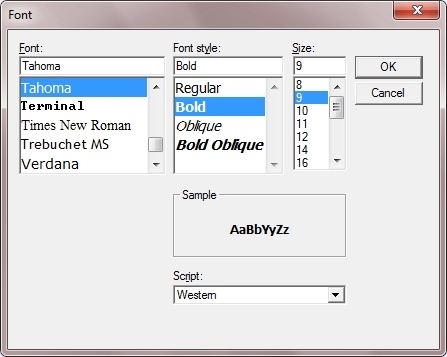

  2. To configure the font face and font size, click the button to the right of the Font line (1) to open the corresponding dialog box.

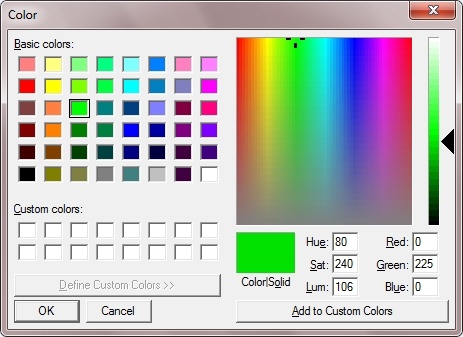

  3. To configure the color of captions, double-click the area to the right of the Color line (2). The color selection dialog box opens.
