Setting up the saving and displaying of the LP numbers

When the LPR channel recognizes an LP number, it registers this event in its database (by default, LPR). The Uragan module can be set to save the photo image of the vehicle whose LP number has been recognized, to the SQL database.

Auto-Intellect allows overlaying the symbols of the recognized LP number over the vehicle image saved to the SQL database.

If this function is enabled, the LP number titles are overlaid onto the video image while viewing the full information about the vehicle with the recognized LP number (see the Auto-Intellect Software Package. Operator's Guide document).

To set up the saving and displaying of the LP numbers do the following:

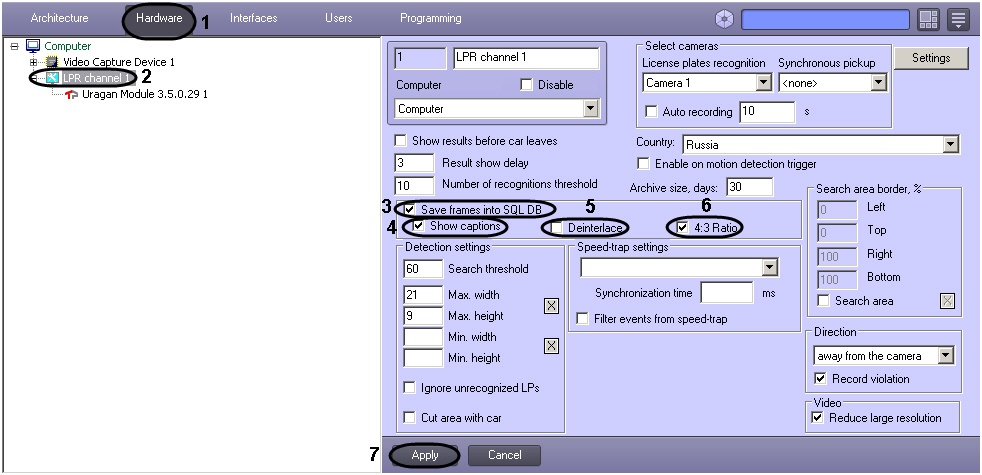

1. In the System Settings dialog window, open the Hardware tab (1).
2. Select the LPR channel, corresponding to the activated Auto-Uragan 3.5.0.29, CARMEN-parking, CARMEN-Auto, ACCR or VIT module, in the objects tree on the Hardware tab (see Activating the program module, used for identifying the plates section, 2).The settings panel of the selected object will open on the right side of the window.

3. Check the Save frames into SQL DB checkbox to enable the function of saving the frame with a vehicle, which number has been recognized, to SQL DB (3).
4. Check the Show captions checkbox to enable the function of interlacing while forming the report about the recognized number (4).
5. In case, when a video is received in full resolution check the Deinterlace checkbox for deinterlacing of the frame with a vehicle (5).
6. In case, when there should be displayed a frame with ratio 4:3 in the report about the recognized number, check the 4:3 Ratio checkbox (6).
7. Click Apply (7).

Setting the saving and displaying of the LP numbers is complete.
