Documentation for Auto Intellect 5.0. Documentation for other versions of Intellect is [available too].

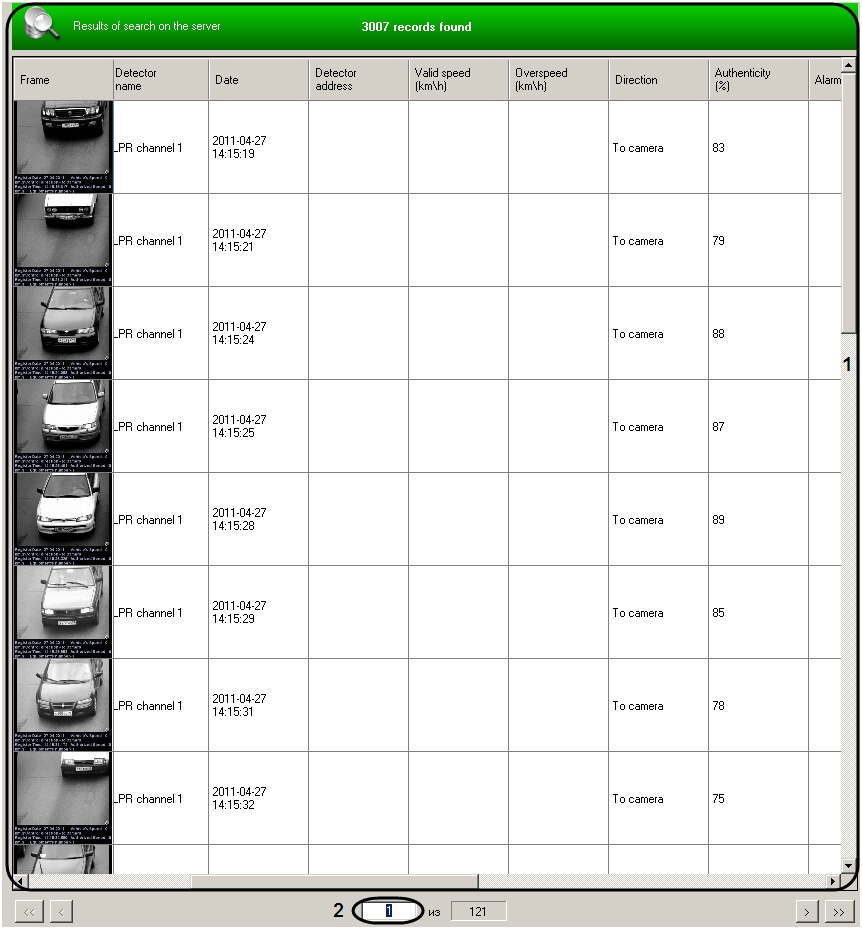

Columns of Search results table (1) are displayed in accordance to the settings, given in the Selection of displayed fields dialog window (see Setting up the events search section).

Description of the column's content is given in the same section of the Guide.

For result's navigation in the table there are used the following interface elements:

  1. button  – transfer to the first page of the table;
  2. button  – transfer to the previous page of the table;
  3. field  – transfer to the required page of the table;
  4. field  - number of pages in the table;
  5. button  – transfer to the next page of the table;
  6. button  – transfer to the last page of the table.

Note.

To transfer to the required page one should enter its number in the field 2 (2), and then click Enter.

 To print the Event search results or/and export them to one of the most commonly used formats select the point File of the main menu in the window Event search in the Recognizers DBs.

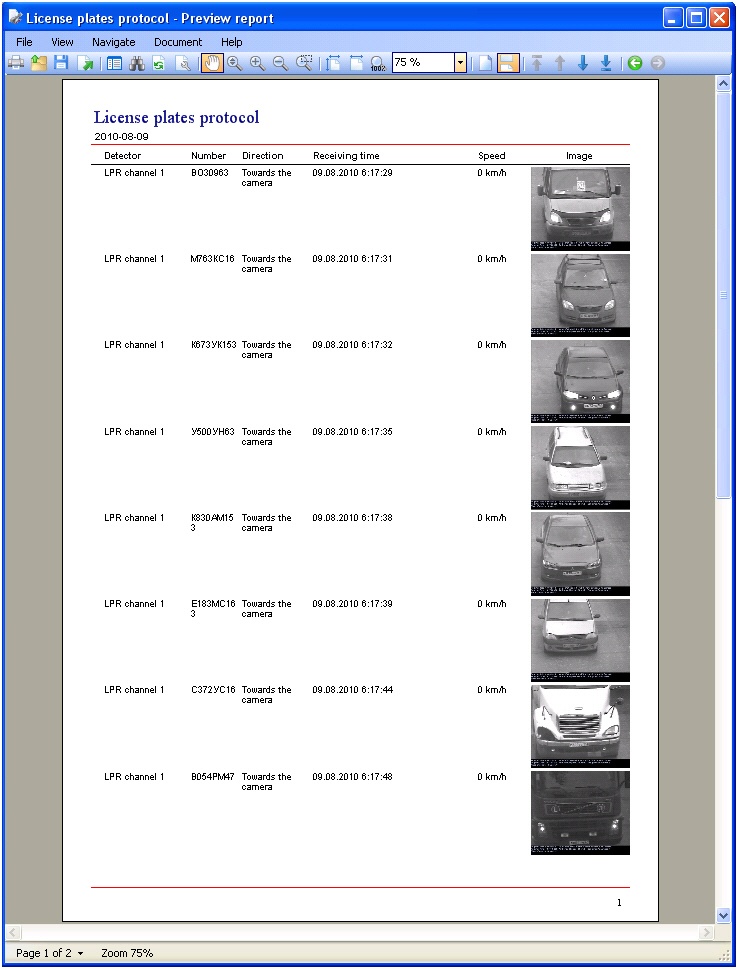

As a result preview report program will launch. In the window of this program there will be displayed License plates protocol.

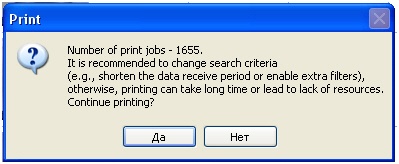

If there are more than 1000 entries in the search results the following message will be displayed before the preview report program launch.


Click Yes to continue. Click No to come back to change the search criteria.

Perform the necessary operations with a report and then quit the program Preview report by following the points of the main menu File -> Exit or by clicking the button  (see step 4 in the section Printing and exporting the data about the vehicle).

The data about violations are exported into JPG files. The file contains the camera frame, the synchronous camera frame and meta-information in the Arena module format. This functionality is required for integration with the TRIS. The exported file can be opened in any program designed to view JPG files, but only the frame received from the main camera will be displayed.

To export the data about violations to files select the Export item in the File of the main menu in the window Event search in the Recognizers DBs.

In the opened window select the folder in which photos with violations are to be exported. Click OK.

As a result all photos with violations corresponding to event search results will be exported to the specified folder.

Note.

If the Debug4 mode is enabled, then besides JPG-file containing frames from primary and synchronous cameras and meta-information, there will also be exported an archive containing information for the Arena module and frames from the synchronous camera.
