There is possibility to command from the component On-line monitor in order to reproduce the video archive by event in the interface window the Monitor.

Note.

The preliminary set Monitor object should be selected as a monitor for controlling on the Vehicle Tracer settings panel (see the document Auto-Intellect software package: Administrator Guide).

To view the video archive by event do the following:

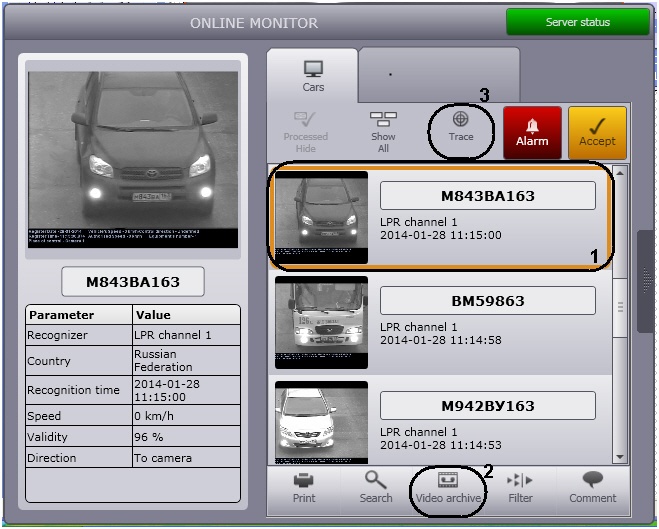

  1. Select the event in the identification vehicles protocol or alarms protocol, clicking upon it with a left mouse button (1). Operative update of the protocol, displayed on the screen, will be suspended in result.
  2. Click Video archive (2).

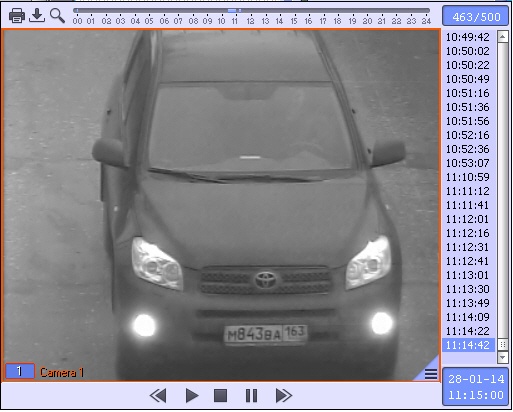

  3. In case, when currently the monitor with a video surveillance corresponding to the plates identification camera is displayed on the screen, this video surveillance window will enable the mode of displaying the archive recording by the event. Video archive navigation is described in the document Intellect software package: Operator's Guide. To close the video archive displaying mode it is necessary to click with a left button upon the  sign in the right bottom corner of the video surveillance window.
  4. To resume operative update of displayed protocol click the Trace button (3).

Viewing the video archive by event is completed.
