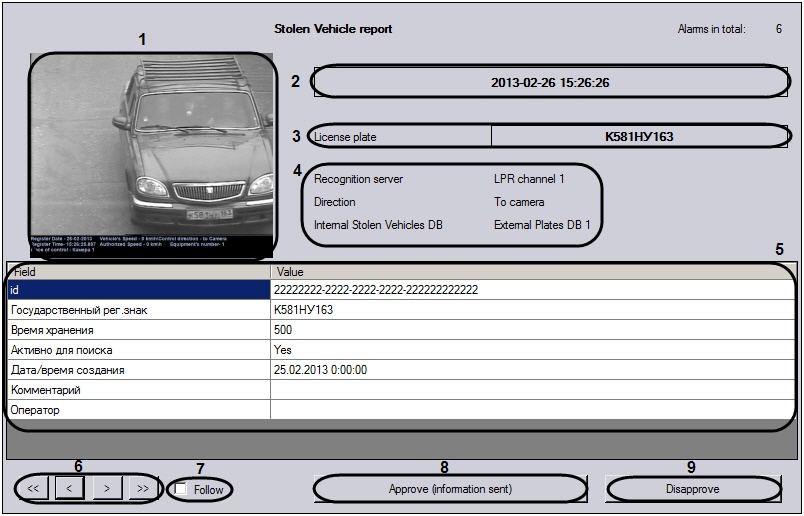

The Alarm window contains the following interface elements.

The Alarm window interface description is presented in the following table.

Number

of element

Description

1

The signed video frame with moving vehicle

2

Date and time of alarm event fixing.

3

Displaying the vehicle LP

4

Data about vehicles with which help the alarm was fixed

5

Orientation description

6

Go to the first orientation in the list; go to the previous orientation; go to the next orientation; go to the last orientation in the list

7

If the checkbox is set it disappears from all alarm windows in distributed environment when the alarm is confirmed, when the alarm is not confirmed – only from the current alarm window.
If the checkbox is not set the alarm disappeared only from the current alarm window both when the alarm confirmed or not.

8

Confirm the event alarm status. The alarm is marked as received when click this button. The dialog box with the offer to print the orientation card will display.

9

Close the orientation window. The alarm status is not changed when click this button (alarm is not processed). Alarm will disappear from the Alarm window.
