To select the traffic information display option, do the following:

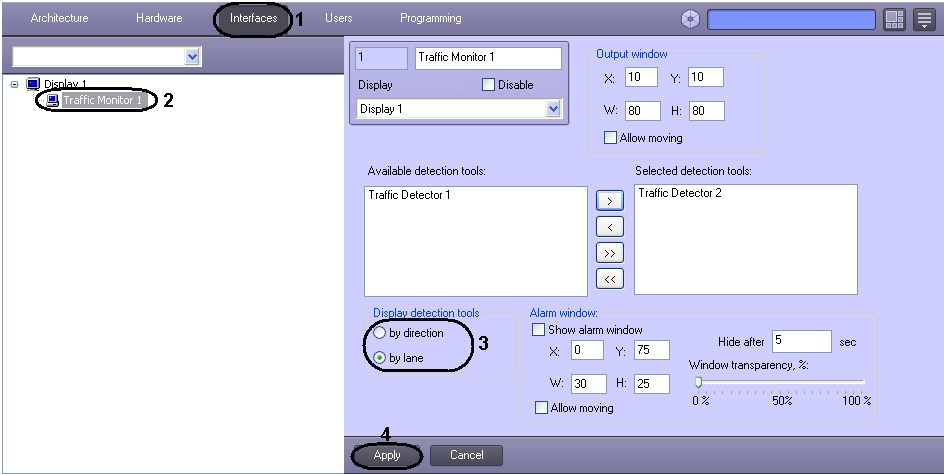

  1. Open the Interfaces tab in the System Settings window (1).
  2. Select the Traffic Monitor object in the object tree (2).
  3. Select one of the radio-buttons in the Display detection tools group - by direction, or by lane (3).
  4. Click Apply to save the settings (4).

The information display option is now selected.
