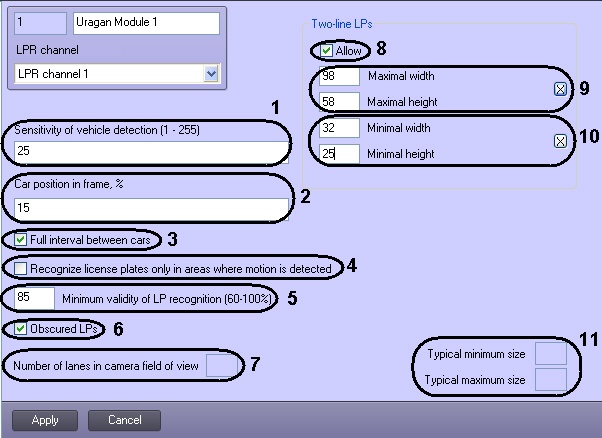

The Uragan Module module object settings panel contains the following interface elements:

The following table describes the elements of the Uragan Module object settings panel.


№

Parameter name

Parameter setting method

Description

Data type

Default value

Value range

1

Sensitivity of vehicle detection (1-255) field

Setting the value in the field

Set detector sensitivity to picture contrast of the car

Lux

25

1-255

2

Car position in frame, % field

Setting the value in the field

Set car position in frame between the moments of car appearance and disappearance from the frame

% regarding the frame

15

0-100

3

Full interval between cars checkbox

Setting check box

Switch recognizer to waiting mode of motion absence all over the frame

Boolean type

No

Yes – recognizer is in waiting mode of motion absence all over the frame.
No – recognizer is not in waiting mode of motion absence all over the frame.

4

Recognize license plates only in areas where motion is detected checkbox

Setting check box

Switch recognizer into the mode in which the plate recognizing is performed only in areas where motions was detected.

Boolean type

No

Yes – recognizer works with those areas where the motion was detected.
No – recognizer works with all frame areas

5

Minimun validity of LP recognition (60-100%) field

Setting the value in the field

Set the minimal allowed validity of LP recognition

Integer non-negative number

85

60-100

6

Obscured LPs checkbox

Setting check box

Enable the possibility of obscured LP recognition

Boolean type

No

Yes – recognition of cars with obscured plates is enabled.
No – recognition of cars with obscured plates is disabled.

7

Number of lanes in camera field of view

Non-edited field

Displays the number of lanes in camera field of view

Integer non-negative number

-

-

8

Allow

Setting chech box

Enable the possibility of two-lines license plates recognizing

Boolean type

No

Yes – two-lines LPs are recognized.
No – two-lines LPs arenot recognized

9





Maximal width

Setting the value in the field

Maximal width of the two-lines license plates

% regarding the frame

-

Unlimited

Maximal height

Setting the value in the field

Maximal height of the two-lines license plates

% regarding the frame

-

Unlimited

Button X

Click the button

Access to the interactive interface of setting the area width and height of two-lines license plates

-

-

-

10





Minimall width

Setting the value in the field

Minimal width of the two-lines license plates

% regarding the frame

-

Unlimited

Minimal height

Setting the value in the field

Minimal height of the two-lines license plates

% regarding the frame

-

Unlimited

Button X

Click the button

Access to the interactive interface of setting the area width and height of two-lines license plates

-

-

-

11



Typical minimum size

Non-edited field

Displays the typical minimum size of license plate

Integer non-negative number

-

-

Typical maximum size

Non-edited field

Displays the typical maximum size of license plate

Integer non-negative number

-

-
