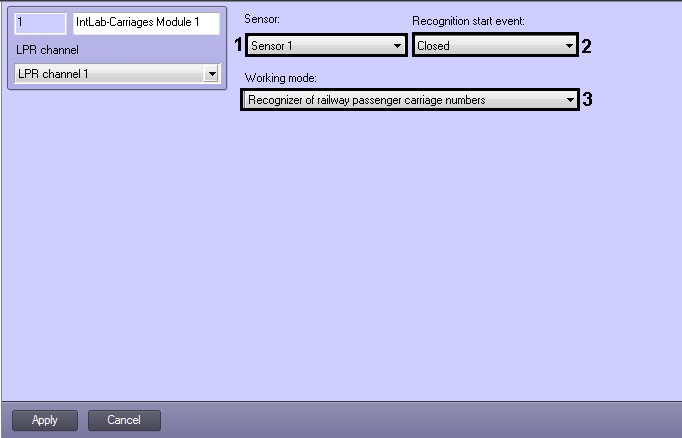

The IntLab-Carriages Module object settings panel contains the following interface elements:

The following table describes the elements of the IntLab-Carriages Module object settings panel.

№

Parameter name

Parameter setting method

Description

Data type

Default value

Value range

1

Sensor drop-down list

Selecting the value in the list

Selecting Sensor object which will perform the recognition of carriage license plates

List of accessible Sensor objects

Sensor 1

Depending on number of accessible Sensor objects

2Recognition start event drop-down listSelecting the value in the listSelecting event on which the plate recognition will startLict of available eventsClosed

Closed – recognition of carriage license plates will start on the Sensor closed event

Open – recognition of carriage license plates will start on the Sensor opened event

3Working mode drop-down listSelecting the value in the listSelecting working period used for recognition of carriages license platesList of accessible working modesRecognizer of railway passenger carriage numbers

Recognizer of railway passenger carriage numbers – is used for recognition of railway passenger carriage numbers

Recognizer of railway freight carriage numbers – is used for recognition of railway freight carriage numbers
