The Vehicle detector settings panel

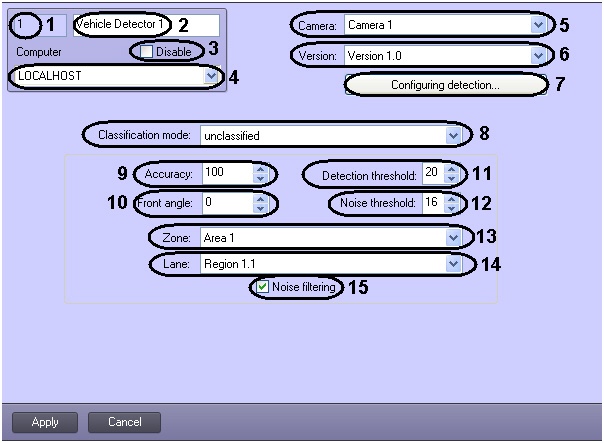

The Vehicle detector object settings panel includes the following interface elements:

The following table describes the elements of the Vehicle Detector object settings panel.

№	Parameter name	Parameter setting method	Description	Data type	Default value	Value range
1	ID	Automatically	Displays the ID number of the Vehicle detector object	Numbers	-	From 1 and above. Depends on the number of the Vehicle detector objects in the system
2	Name	Enter the value in the field	Set the name of the Vehicle detector object	Latin, Cyrillic and special symbols	the Vehicle detector	A sting, containing a sequence of characters (letters, digits, characters)non case-sensitive Number of characters– from1 to 60.
3	Disable	Is set by a checkbox	Set the Vehicle detector object's state(enabled or disabled) in the system	Boolean type	No	Yes– the Vehicle detector object is disabled and is not in use No -the Vehicle detector object is enabled and in use
4	Computer	Select the value from the list	Set the Computer parent object in the system, to which this Vehicle detector object is related	Names of objects, registered in the system Computer	Name of the parent object Computer	Depends on the objects number Computer in the system
5	Camera	Select the value from the list	Set the number of cameras in the Vehicle detector	Names of objects, registered in the system Camera	-	Depends on the objects number Camera in the system
6	Version	Select the value from the list	Set the version of the Vehicle detector	Versions of the Vehicle detector	Version1.0	Version1.0
7	Configuring detection...	Press the button	Provides the access to a graphic tool of the detection zone setup	-	-	-
8	Classification mode:	Select the value from the list	Set the vehicle's classification mode	Names of classification types	unclassified	unclassified – vehicles are not classified Only vehicle's length– vehicles are classified according to their length
9	Accuracy:	Enter the value in the field	Set the degree of belief to the Vehicle detector's indications. This parameter is designed for the detector's description.	%	100	From 0 to 100
10	Front angle	Enter the value in the field	Set the angle, corresponding to the angle's projection, formed by the vertical camera's support pole and its objective's optical axis to the vertical plane , parallel to the road	Angle in degrees	15	From 0 to 60. Не IS not recommended to set over 45°
11	Detection threshold	Enter the value in the field	Set the detector's triggering threshold. Is experimentally determined value	Conventionsl units	20	From 0 to 100
12	Noise threshold	Enter the value in the field	Set the detector's noise threshold. 10%-30% less than the triggering threshold	Conventionsl units	16	From 0 to 100
13	Zone	Select the value from the list	Set the object Zone/Region, corresponding to the territory, where the Vehicle detector is located.	Names of objects, registered in the system Zone/Region	-	Depends on the number of Zone/ Region objects, registered in the system
14	Lane	Select the value from the list	Set the Region object , corresponding to the lane , processed by the Vehicle detector	Names of objects, registered in the system«Region»	-	Depends on the number of Region objects, registered in the system
15	Noise filtering	Is set by a checkbox	Includes vehicles' identification algorithm with an extremely noisy video signal	Boolean type	No	Yes- vehicles' identification algorithm with an extremely noisy video signal is enabled No - vehicles' identification algorithm with an extremely noisy video signal is disabled
