Select the LPR channels, the information from which will be displayed in the Vehicle Tracer interface window, as follows:

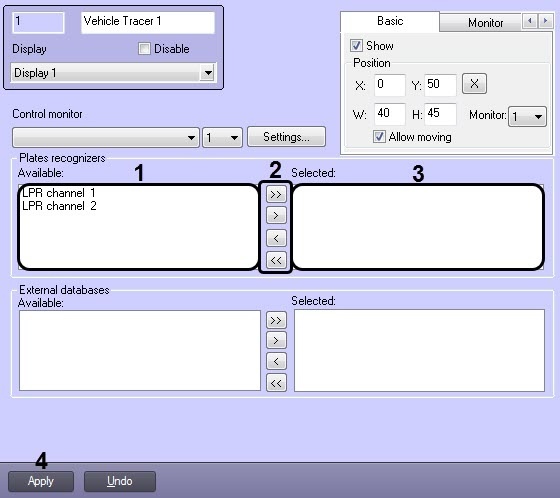

  1. Go to the Vehicle Tracer settings panel.
  2. From the Available list of the Plates recognizers group (1), select the required LPR channel.

  3. Move the selected LPR channel to the Selected list (3) using the  button (or  button (2) for moving all the LPR channels from the list).

    Note.

    Buttons  and  are used for moving the selected or all the LPR channels from the Selected list back to the Available list.

  4. Click Apply to save the changes (4).

Selecting the LPR channels is completed.
