Printing and exporting the vehicle data

Printing and exporting the vehicle data is done in the following way:

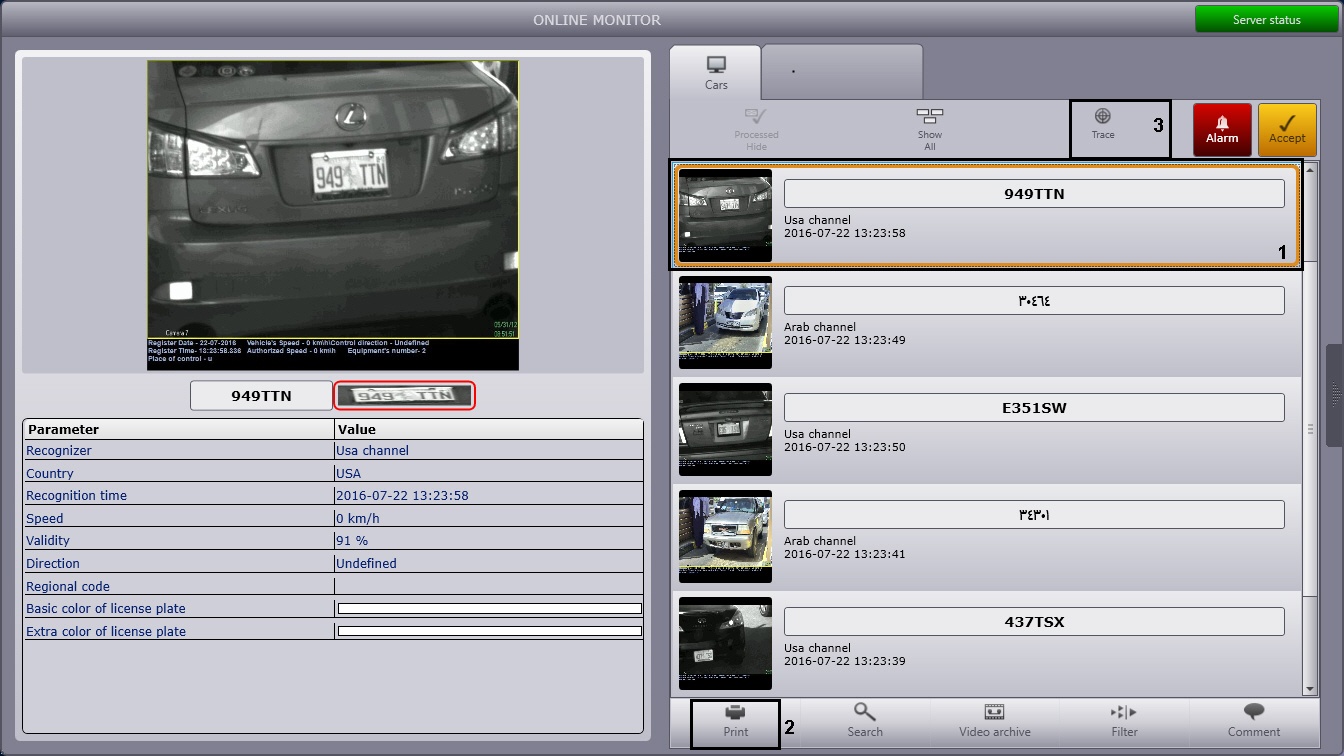

Left-click the event in the identified vehicles protocol or events protocol (1). Online update of the protocol, displayed on the screen, will be suspended.
To build a report with vehicle data, click the Print button (2).

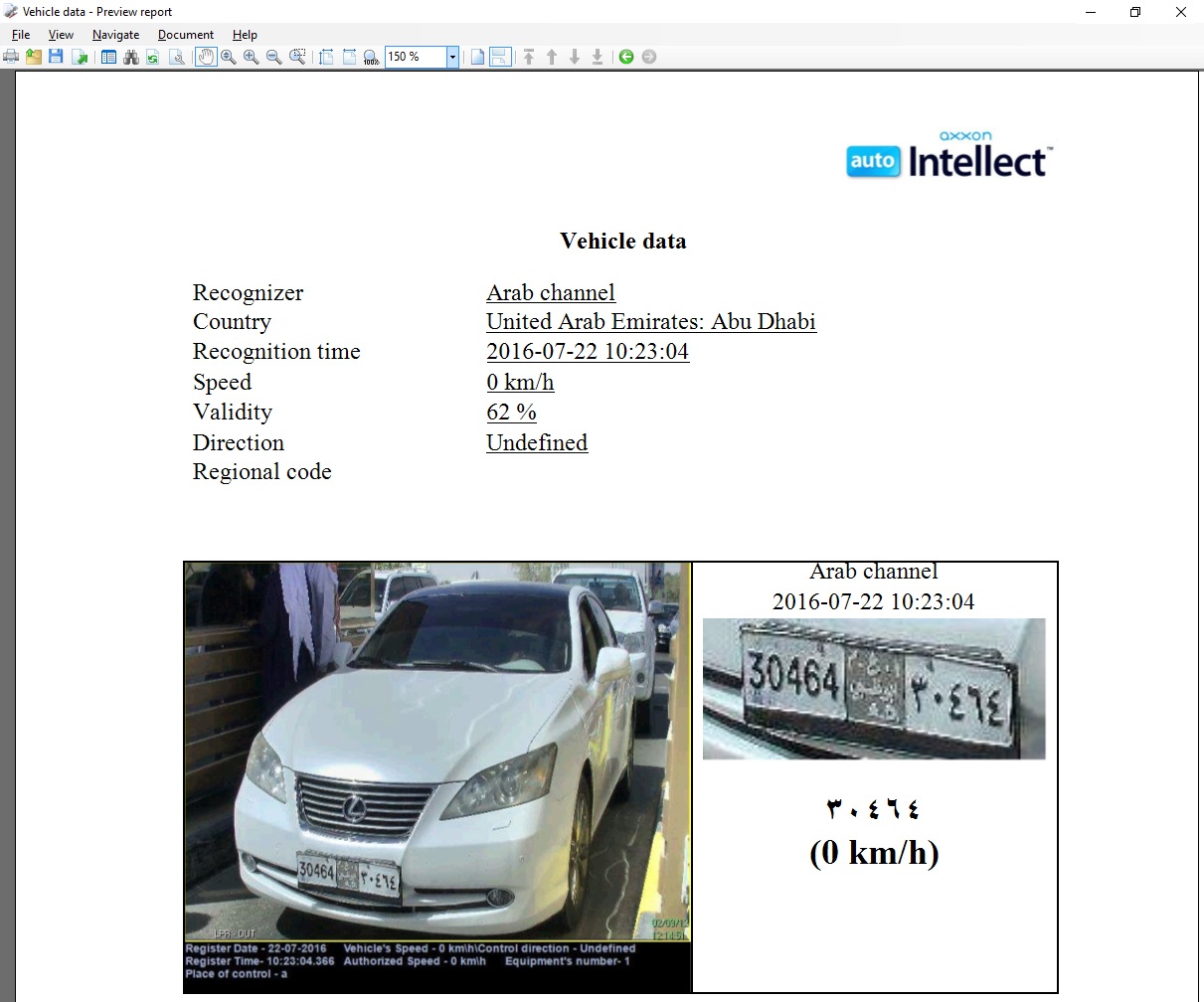

The report preview program will be displayed.

If necessary, do the following operations with the report, then quit the report preview program by clicking the File -> Exit viewer in the main menu, or by clicking the button in the top right corner.

The available operations for the report are listed in the table below.

Operation	Operation invocation
Operation	Main menu item	Context menu item	Toolbar button
Open the report, saved in .rsd or .xml	File -> Open	-
Save the report in .rsd or .xml	File -> Save	-
Export the report to one of the common formats	File -> Export	-
Print the report	File -> Print	-
Activate the «Hand» tool	View -> Scrolling	Scrolling
Zoom in the report pages	View -> Zoom in	Zoom in
Zoom out the report pages	View -> Zoom out	Zoom out
Enable dynamic scaling of report pages	View -> Dynamic scaling	Dynamic scaling
Zoom in the selected area of the report	View -> Region scaling	Region scaling
Scale in page size	View -> In page size	In page size
Scale in page width	View -> In page's width size	In page's width size
Display pages in real size	View -> Real size	Real size
Enter or select from the list the required scale of displaying the report pages	View -> Set the scaling	Set the scaling
Enable the nonstop paginal report displaying	-	-
Enable the page-by-page report displaying	-	-
Go to the first page	Navigate -> The first page	The first page
Go to the previous page	Navigate -> Previous page	Previous page
Go to the next page	Navigate ->The next page	The next page
Go to the last page	Navigate ->The last page	The last page
Go to the certain page (open the «Go to page» dialog window)	Navigate -> Go to page	-	-
Display the previous view	Navigate -> Back	Back
Display the next view	Navigate -> Forward	Forward
Find the required characters in the report	Document -> Find	Find
Update the report	Document -> Update	Update
Edit the report (open the editing program)	Document -> Edit the report	Edit the report
Display table of contents	-	-
Display information about the program to view the report	Help -> About program	-	-
Close the preview report program	File -> Close	-	-
