To select the external databases that should be used as the Active tracking databases, do the following:

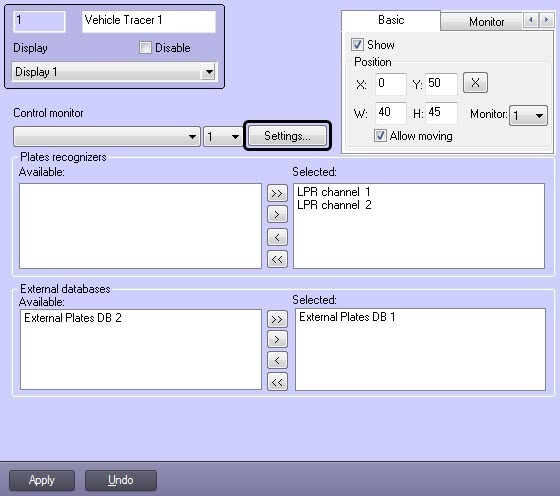

  1. Go to the Vehicle Tracer settings panel.
  2. Click the Settings button.

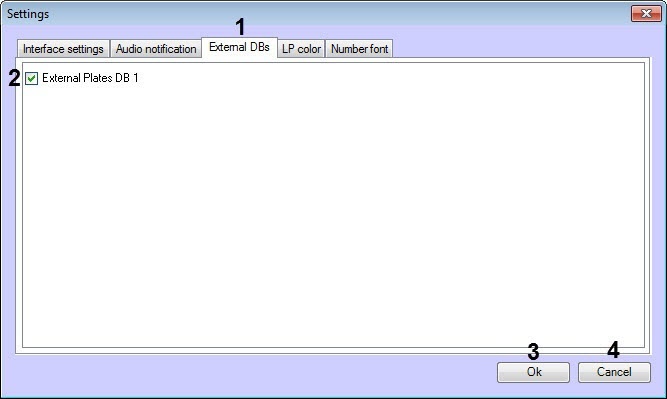

  3. Go to the External DBs tab in the opened dialog window (1).

  4. Select the check boxes for those external databases that should be used as the Active tracking databases (2).

    Note.

    To select the external databases as the Active tracking databases it's required to select the local database with specified Catch_DB table and Plate field while configuring the External Plates databases (for the detailed information about External Plates databases configuring, see Connecting the external database).

  5. Click OK to save the changes and close the Settings dialog window (3).

    Note

    Click Cancel to close the Settings dialog window without saving the changes (4).

  6. Click Apply to save the changes on the Vehicle Tracer settings panel.

Selecting the external databases as the Active tracking databases is completed
.
