It is possible to record a video signal received from a LP recognition video camera during a predetermined time interval. If this function is enabled, the recording starts automatically when the LPR channel recognizes an LP number.

Note.

In case of heavy traffic, when subsequent LP numbers are registered in a time period smaller than that specified, the video signal is recorded continuously.

To enable automatic recording functionality, do the following:

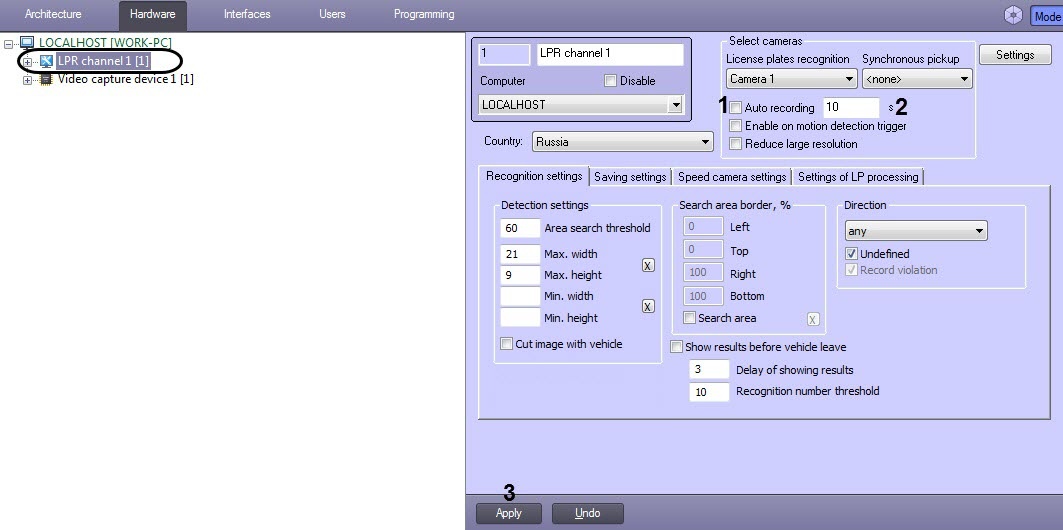

  1. Go to the LPR channel object settings panel, corresponding to the activated module (see Activating the program module, used for identifying the plates section).

  2. Set the Auto recording checkbox to enable recording the video upon recognizing an LP number (1).

    Note.

    For correct auto recording when working with the IntLab program module specify the Pre-alarm record parameter in the settings panel of the Camera object (see Configuring video in the Pre-alarm record mode).

  3. In the field next to the checkbox (2), specify for how many seconds the video should be recorded after LP number recognition.

    Note.

    Zero (0) in this field means that the recording starts at the moment of LP recognition and continues indefinitely.

  4. Click Apply (3).

The auto recording setup is complete.
