The Traffic Detector object settings panel

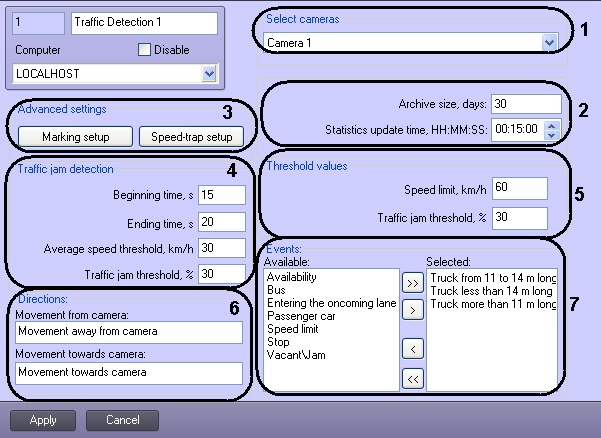

The figure shows the Traffic Detector object settings panel.

The following table describes the elements of the Traffic Detector object settings panel.

	Parameter name	Field type	Description	Data type	Default value	Value range
1	Select cameras	List	Selecting the camera for Traffic Detector	List of available Camera objects	Not specified	Depending on the number of available Camera objects
2	Archive size	Text field	Storage depth of the database archive	Days	30	1 - 60
2	Statistics update time	Text field	The period of statistics update	HH:MM:SS	01:00:00	00:10:00 - 23:59:59
3	Marking setup	Button	Setting up the markings parameters	-	-	-
3	Speed-trap setup	Button	Setting up of the Radar module to work together with Traffic Detector	-	-	-
4	Beginning time	Text field	Setting up the time period to detect the start of the jam	Seconds	15	1 - 60
	Ending period	Text field	Setting up the time period to detect the end of the jam	Seconds	20	1 - 60
	Average speed threshold	Text field	Setting up the speed threshold to detect a jam	Km/h	30	1 - 255
	Traffic jam threshold	Text field	Setting up the road load threshold to detect a jam	Percent	30	1 - 100
5	Speed limit	Text field	Maximum allowed vehicle speed	Km/h	60	1 - 255
5	Traffic jam threshold	Text field	Setting up the maximum road load	Percent	30	1 - 100
6	Movement from camera	Text field	Setting the display text for movement away from the camera	Latin, Cyrillic and special symbols	Movement away from camera	Case-insensitive character string, 1 to 256 symbols
6	Movement towards camera	Text field	Setting the display text for movement toward the camera	Latin, Cyrillic and special symbols	Movement toward camera	Case-insensitive character string, 1 to 256 symbols
7	Available events:	List	The list of all available events in Traffic Detector	List of events	All events	Depending on the number of available events
	Selected events:	List	The list of events used in Traffic Detector	List of events	Not specified	Depending on the number of available events
	Add (>)	Button	Add selected events from the Available events field to the Selected events list	-	-	-
	Add all (>>)	Button	Add all events from the Available events field to the Selected events list	-	-	-
	Remove (<)	Button	Remove selected events from the Selected events list	-	-	-
	Remove all (<<)	Button	Remove all events from the Selected events list	-	-	-
