The following figured show the Charts panel of the Current value tab displayed by lane and by direction, respectively (depending on the system setup).

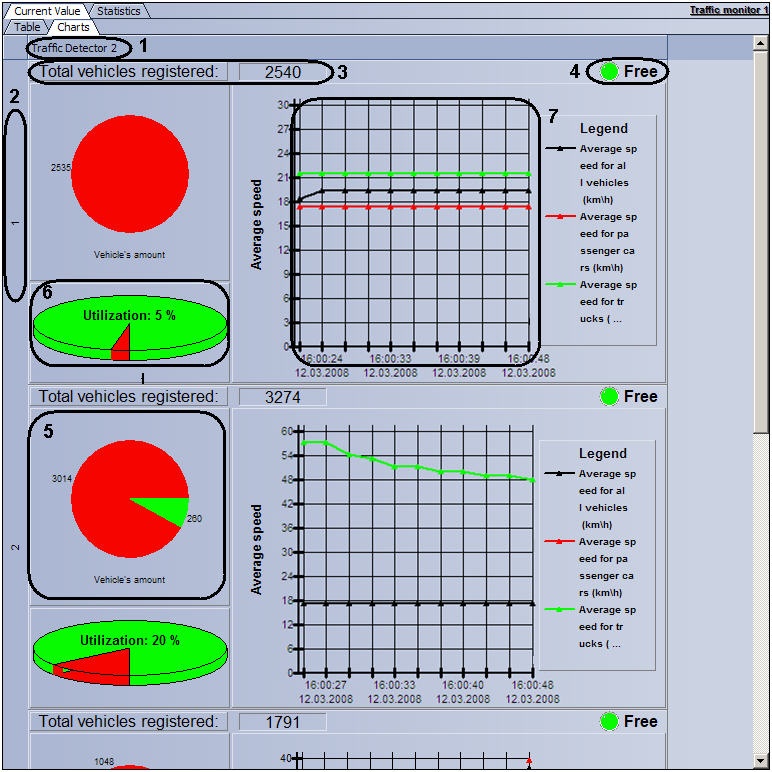

Displaying by lanes:

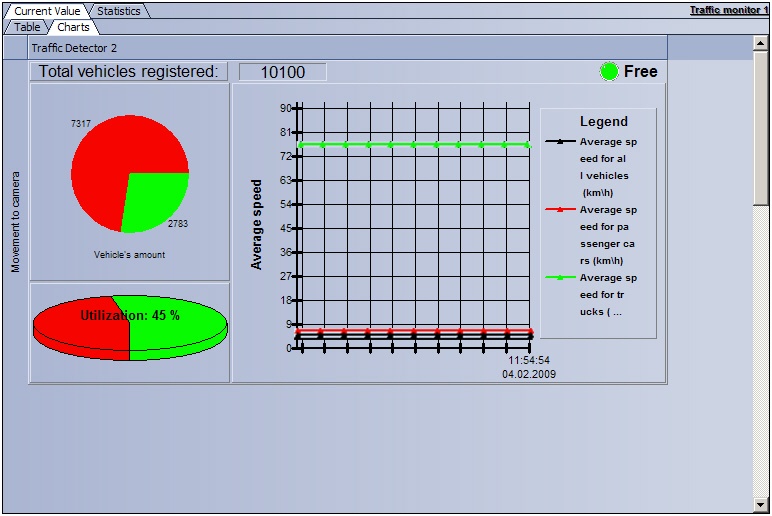

Displaying by direction:

The following table describes the elements of the Charts panel.

Number

of element

Description

1

The Traffic Detection object name

2

The lane number or direction

3

Total number of vehicles registered for the lane (direction)

4

Indication of a traffic jam in the lane (direction)

5

Chart showing the number of vehicles in the lane (direction)

6

Chart showing the road load of the lane (direction), %

7

Chart showing the statistics for the average speed of different vehicles types
