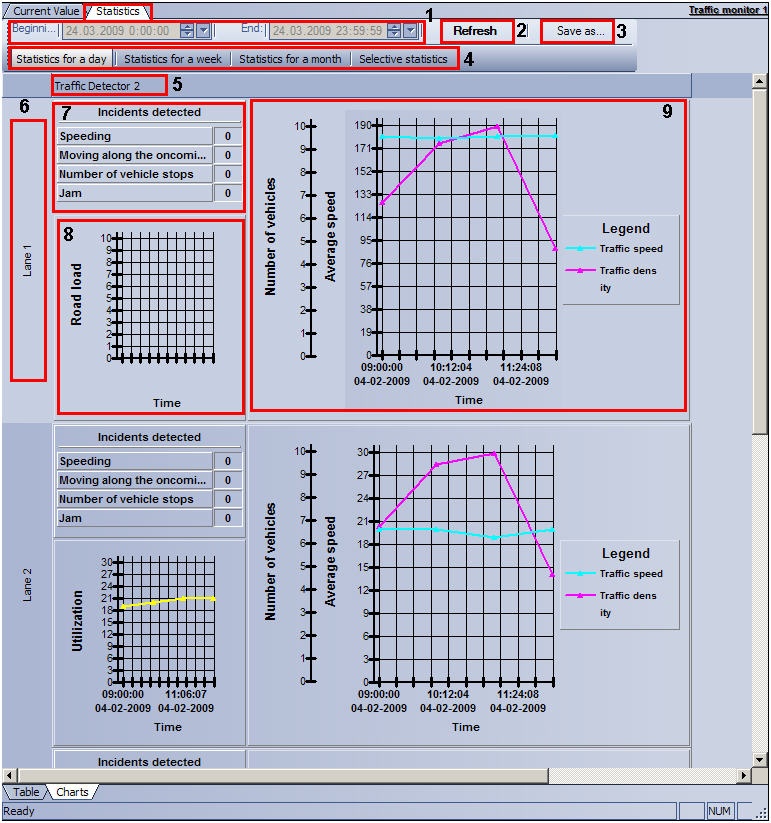

The following figure shows the Charts panel of the Statistics tab.

The following table describes the elements of the Charts panel.

Number

of elements

Description

1

Set of elements for entering the beginning and end dates and times of the traffic statistics period

2

The Refresh button refreshes the displayed statistics.

3

The Save as button exports the displayed statistics to a file

4

Set of elements for selecting the statistic frequency

5

The Traffic Detection object name

6

The lane number

7

Incident statistics for the lane

8

The road load chart

9

Chart showing the number of vehicles in the lane
