The Traffic Detection module is able to detect the emergence of traffic jams on the road. The module generates a specific event and, in certain cases, notifies the operator.

Notes

  • A jam is detected if the average traffic speed is lower than a certain value and the overall road load is higher than a certain value for a specified time period.
  • The traffic jam event is considered to end when the average traffic speed is higher than a certain value, and the overall road load is lower than a certain value for a certain period of time.

To set up the jam detection parameters, do the following:

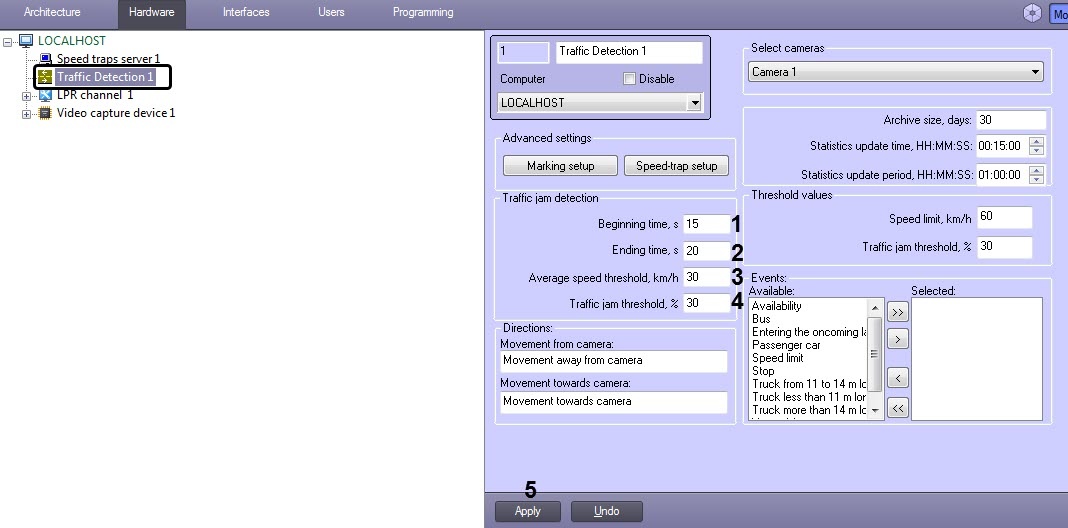

  1. Go to the Traffic Detection object settings panel.
  2. In the Beginning time, s field (1), enter for how long (in seconds) the jam conditions must be satisfied for the start of the jam to be detected.
  3. In the Ending time, s field (2), enter for how long (in seconds) the reverse jam conditions must be satisfied for the end of the jam to be detected.
  4. In the Average speed threshold, km/h field (3), enter the average traffic speed:
    • If the average traffic speed is lower than this value, then a traffic jam may be detected (if other conditions are satisfied).
    • If the average traffic speed is higher than this value, then a traffic jam may be considered to have ended (if other conditions are satisfied)

  5. In the Traffic jam threshold, % field (4), enter the road load (in percent):

    • If the road load is higher than this value, then a traffic jam may be detected (if other conditions are satisfied).

    • If the road load is lower than this value, then a traffic jam may be considered to have ended (if other conditions are satisfied).

      Note.

      The road load parameter is calculated using the following formula:

        ,

      where  is the time during which the vehicles were in the coverage area of the Traffic Detection software module for the statistics update period, and  is the total operating time of the Traffic Detection software module for the statistics update period (see Setting up the update time and period for displaying statistics).

  6. Click Apply (5).

The jam detection parameters are now set.
