It is possible to configure the filtering of the recognized LP numbers according to a number of criteria.

Note

By default, the recognized numbers that have been filtered are not saved in the database. In order for the filtered numbers to be saved in the database, it is necessary to set the 0 value for the SaveFilterToDB parameter (for details, see Registry keys reference guide, for more information about working with the registry, see Working with Windows OS registry).

To configure the filtering of the vehicle plates, proceed as follows:

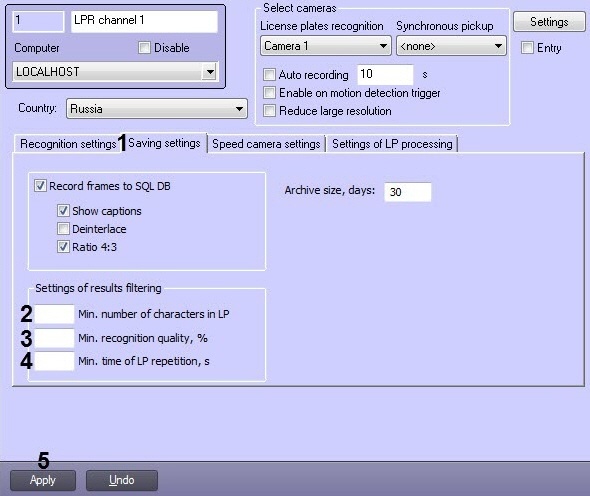

  1. Go to the LPR channel object settings panel (2), corresponding to the activated module (see Activating the software module used for identifying the plates section).
  2. Switch to the Saving settings tab (3).
  3. In the Min. number of characters in LP field indicate the minimum number of characters in the recognized number (4).
  4. In the Min. recognition quality, % field indicate the minimum recognition quality in percent (5).
  5. In the Min. time of LP repetition, s field specify the minimum time in seconds of number repetition on the video (6).
  6. Click Apply to save the settings (7).

Setting up the filtering of the recognized LP numbers is completed.
