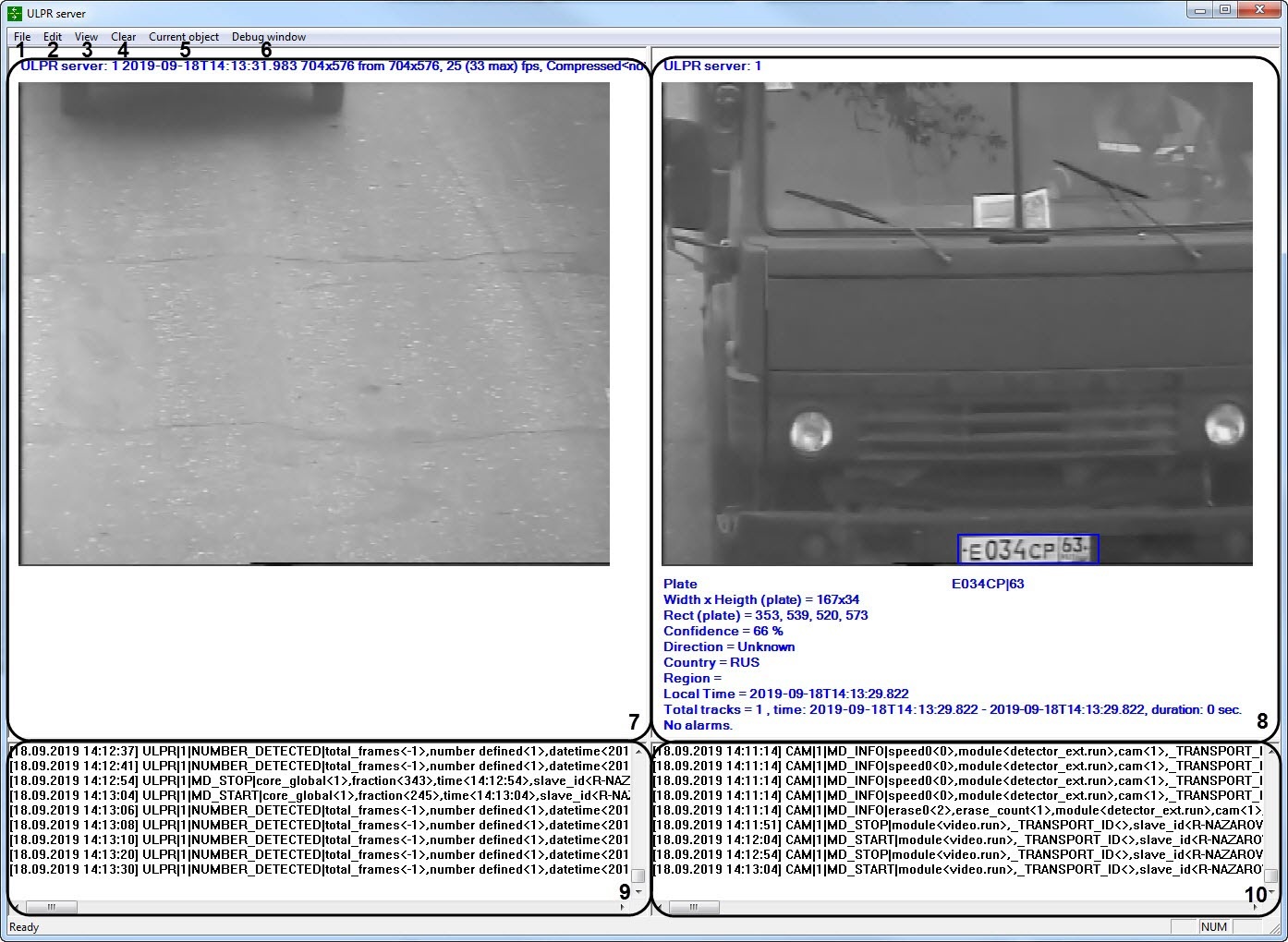

The ULPR server Debug window contains the interface components described in the table below.

Number

Name

Description

1

File menu

Access to the Edit Nearest Time button (see Editing the Nearest Time for the specified remote recognition module)

Access to the Exit button

2

Edit menu

Access to the operations with text

Access to the Force clear database button (see The forced clearing of the license plate numbers database)

3

View menu

Access to the Status bar button meant to display or hide the Debug window in the lower part of the status bar debug window

4

The Clear button

Clearing all areas

5

The Current object menu

Access to the selection of the LPR channel with which the operation will be carried out

6

The Debug window

-

7

The video image preview area from the camera

In this area, the video image from the camera and the data on the video stream are displayed

8

The frame preview area with the last detected vehicle

In this area, the frame with the information on the last detected vehicle is displayed

9

The preview area of the events from the LP recognition channel

In this area, the events of the LPR channel are displayed

10

The preview area of the events from cameras

In this area, the events from cameras are displayed
