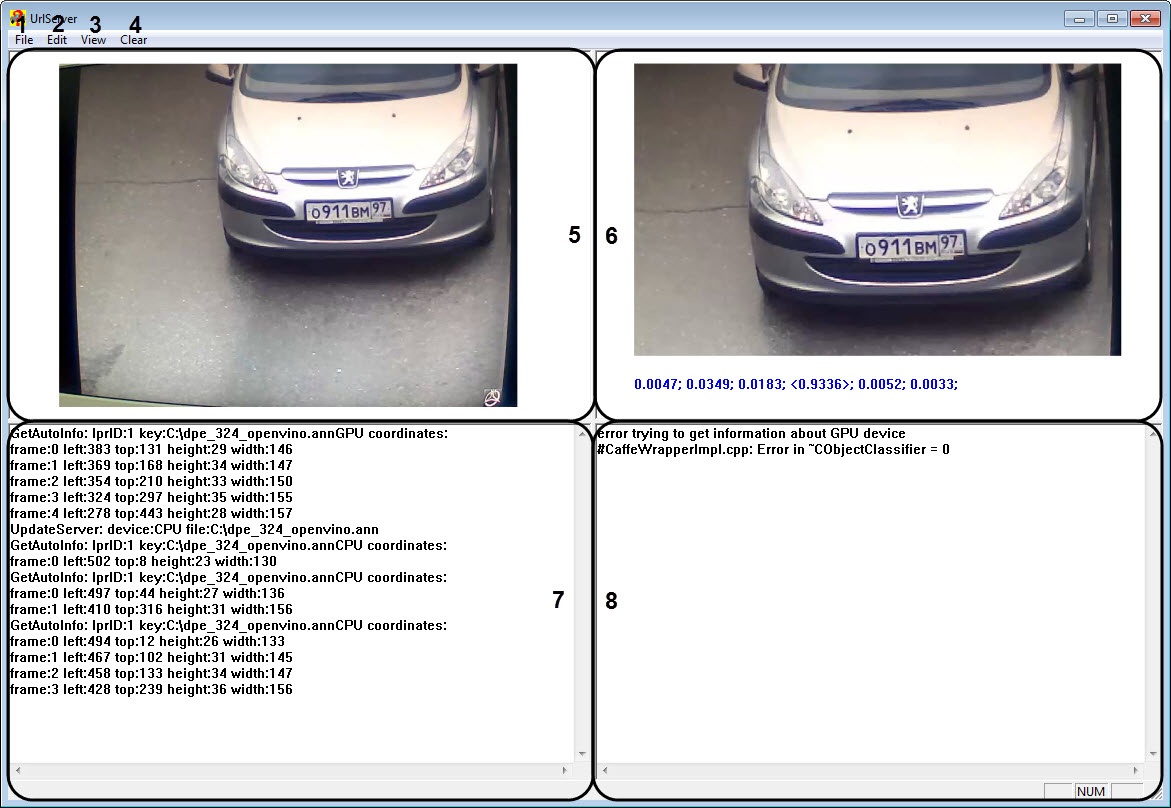

The UrlServer Debug window contains the interface components described in the table below.

Number

Name

Description

1

File menu

Access to the Exit button

2

Edit menu

Access to the operations with text

3

View menu

Access to the Status Bar button, designed to show or hide the debug window status panel at the bottom of the window

4

The Clear button

Clearing all areas

5

The preview area of a frame from the camera

In this area, the video image from the camera received by the UrlServer module is displayed.

6

The preview area of a frame prepared for recognition

In this area, the frame prepared for recognition and information on the results of recognition of this frame are displayed.

7

The preview area of POST requests from UrmLpr

In this area, all processed POST requests from UrmLpr are displayed.

8

The preview area of error events

In this area, all errors that are written to the log file are displayed.
