Attention!

To ensure the proper operation of the PresetEditor.exe utility, it is necessary to grant the read/write access for the current Windows user to the following files:

  • %INTELLECT%\Modules\VIT\LprPresetDemo\PresetEditor\features.EOAWT.xml
  • C:\ProgramData\VIT\LprPresetDemo\presets.xml

The PresetEditor.exe allows creating and editing of template configurations which are used for LP recognition using the VIT recognition module.

To create a template configuration, do the following:

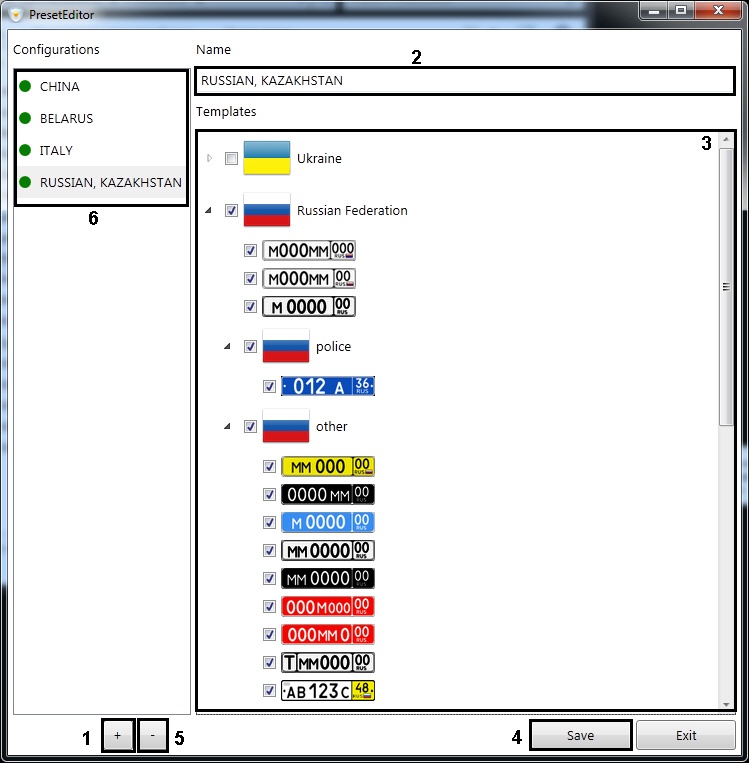

  1. Click the button to create new configuration (1).
  2. Enter a name of configuration in the field (2).
  3. To add template to configuration set checkboxes close to corresponding template in the list (3). if the country is selected in the Templates list, all templates of this country will be added.
  4. To save configuration click the Save button (4).

To remove configuration select the corresponding configuration from the list (6) and click the button.

To edit existing configuration select it in the list (6) and repeat steps 3-4.
