General info about searching the events in the recognizers databases

You can search the events in the the Auto Intellect recognizers databases via the Event search in the Recognizers DBs dialog window.

The full list of operations provided to the operator in the window Event search in the Recognizers DBs, is the following:

  1. Searching the events, stored in the Auto Intellect local or remote recognizers databases.
  2. Printing the search results reports.
  3. Creating the personal LPs database (Active tracking database).

Opening and closing the Event search in the Recognizers DBs window

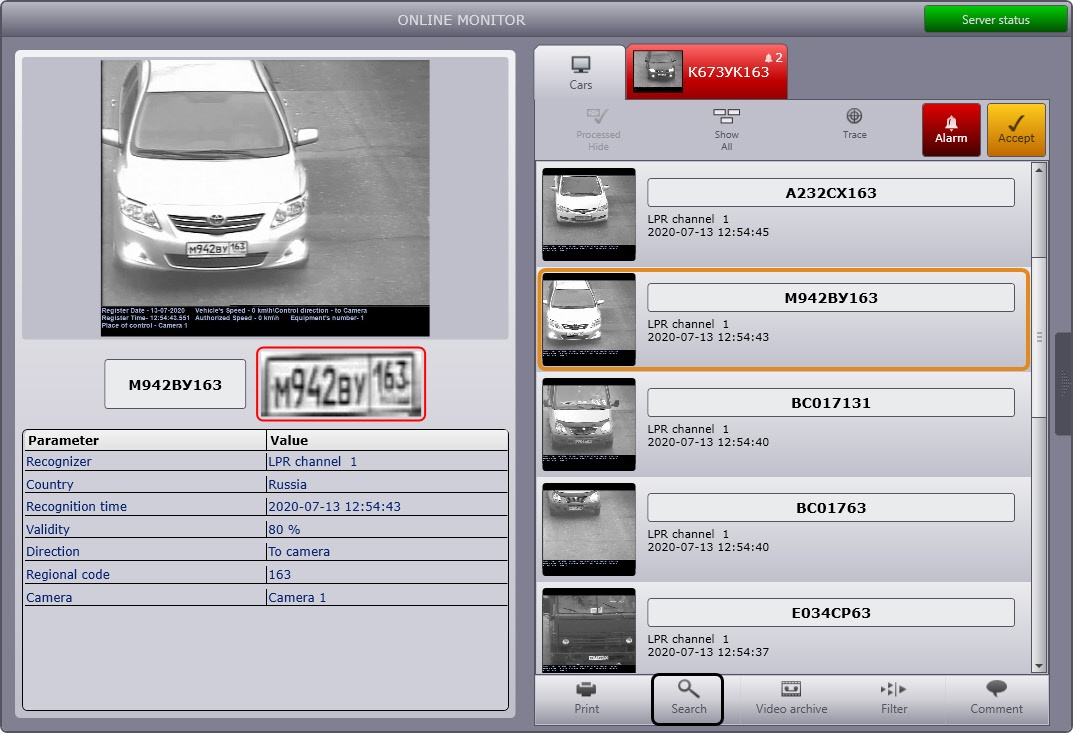

To open the window, click the Search button in the Online monitor interface object.

As a result, the Event search in the Recognizers DBs window will be opened.

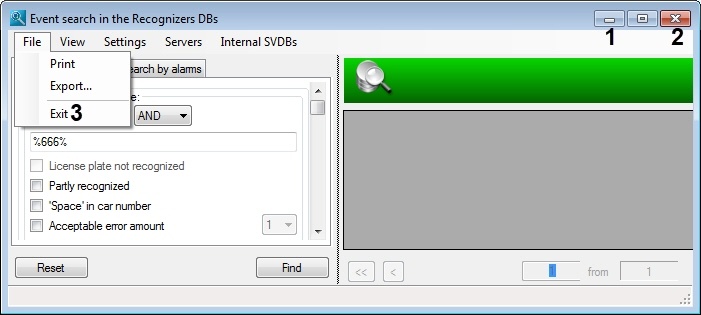

To minimize the Event search in the Recognizers DBs window, click the (1) or (2) buttons. As a result, the window will be minimized to the Taskbar but will continue working.

To close the Event search in the Recognizers DBs window, select the File → Exit item in the main menu (3). As a result, the window will be closed completely.

Opening the Event search in the Recognizers DBs window using the Windows command line

The Event search in the Recognizers DBs window can also be opened using the Windows command line, even when the Intellect is unloaded. To do this, run the following command:

<Intellect installation directory>\Modules>VehiclePlateSearch.run "C:\Users\<Username>\AppData\Local\Temp\PlateSearchSettings_1.xml"

Command example:

C:\Program Files (x86)\Intellect\Modules>VehiclePlateSearch.run "C:\Users\User\AppData\Local\Temp\PlateSearchSettings_1.xml"

"C:\Users\UserName\AppData\Local\Temp\PlateSearchSettings_1.xml" - is the path to the PlateSearchSettings_1.xml configuration file, which is generated each time you click the Search button in the Online monitor interface window in accordance with the current system configuration. If the system configuration has changed, then to re-generate the file, click the Search button again or make changes to the file manually.

Note

If you work in the Event search in the Recognizers DBs window with the Intellect unloaded, then the vehicle frames and license plate images will not be displayed.
