Camera requirements for the Fire detection and Smoke detection modules

  • The Fire detection module can be configured on the settings panel of the Fire detection object created on the basis of the Camera object on the Hardware tab of the System settings dialog window.
  • The Smoke detection module can be configured on the settings panel of the Smoke detection object created on the basis of the Camera object on the Hardware tab of the System settings dialog window.

The Fire detection and Smoke detection modules are configured similarly and as follows:

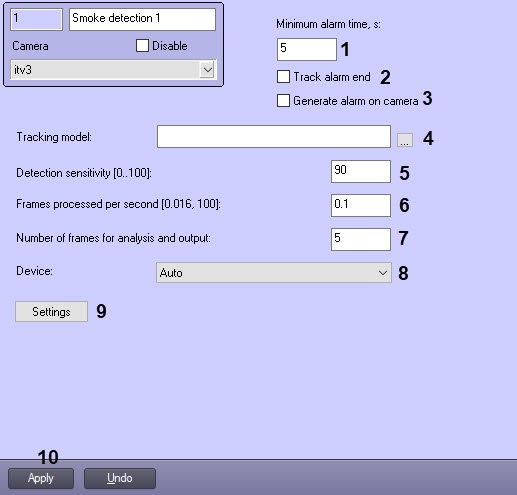

  1. Go to the appropriate detector object settings panel.

  2. In the Minimum alarm time, s field (1), enter the time period in seconds during which the repeated fire/smoke alarms will be ignored.

    Note

    For example, if 5 seconds is set in the Minimum alarm time, s field, and there is a fire/smoke on the image during a longer period of time, then in order to avoid receiving messages about the fire/smoke from the detection tool every 5 seconds, set a higher value for the Minimum alarm time, s parameter (for example, 10 seconds). In this case, only one message about the fire/smoke will be displayed, and all the following alarms will not be displayed in the Event viewer until the time interval between the recognitions of the fire/smoke becomes longer than 10 seconds.

  3. Set the Track alarm end checkbox (2), if it is necessary to generate an end-of-alarm event only after the expiration of the time, which is counted as: time of the last received alarm + time specified in the Minimum alarm time, s parameter.
  4. Set the Generate alarm on camera checkbox (3), if it is necessary to initiate an alarm on the camera when a detection tool is triggered.

  5. If a unique neural network is prepared for use, in the Tracking model field, click the button (4), and select the file in the standard Windows Explorer window that opens. If the field is left blank, the default neural networks will be used for detection (see the table below). They are selected automatically depending on the CPU and are located in the C:\Program Files (x86)\Intellect\Modules64 directory:

    Neural network nameDetection/CPU
    smoke_openvino.annSmoke detection/CPU
    smoke_original.annSmoke detection/GPU
    fire_openvino.annFire detection/CPU
    fire_original.annFire detection/GPU

  6. In the Detection sensitivity [0..100] field (5), enter the sensitivity of the detection tool—integer value in the range from 0 to 100. This parameter determines at what certainty of fire/smoke detection the detection tool will trigger: the higher the sensitivity, the higher the recognition threshold. For example, at sensitivity 100, the detection tool neural network must get 100% certainty for some period of time when processing the frames. The value of the Detection sensitivity field is determined experimentally.

  7. In the Frames processed per second [0.016, 100] field (6), set the number of frames per second that will be processed by the neural network. This value has an impact on processor load: the higher the value, the greater the load. It also has an impact on the algorithm operation speed: the higher the frame rate, the faster the required number of frames will be collected for making a decision and triggering an alarm, if required.

  8. In the Number of frames for analysis and output field (7), enter the minimum number of frames in the range 5-20 for the detection tool to analyze before triggering. The higher the value, the more reliable the result of the detection tool operation. At the same time, if the value is too high, the short-time fire/smoke can be missed. If you enter a value less than the minimum, the value is set to 5.

    Note

    Multiplication of Minimum alarm time, s and Number of frames for analysis and output values is the time period (in seconds) after which the alarm will trigger after the fire/smoke detection.

  9. In the Device drop-down list (8), select the device on which the neural network will operate. Auto—the device is selected automatically: GPU gets the highest priority, followed by Intel GPU, then CPU.
  10. Click the Settings button (9). The Detection settings windows will open.
  11. Specify the area of interest on the video image:

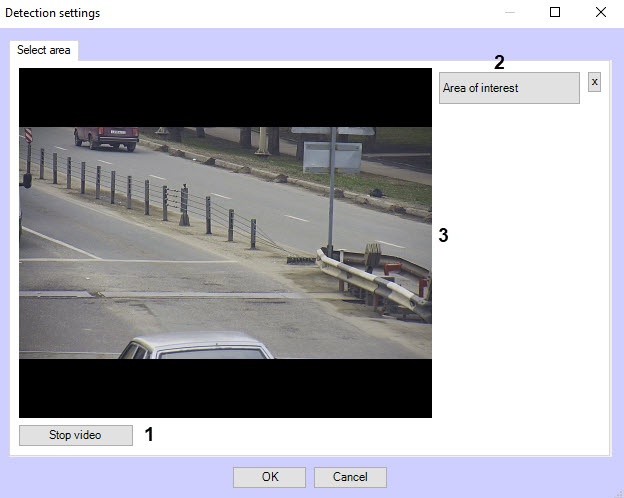

    1. Click the Stop video button to capture the video image (1).
    2. Click the Area of interest button (2).

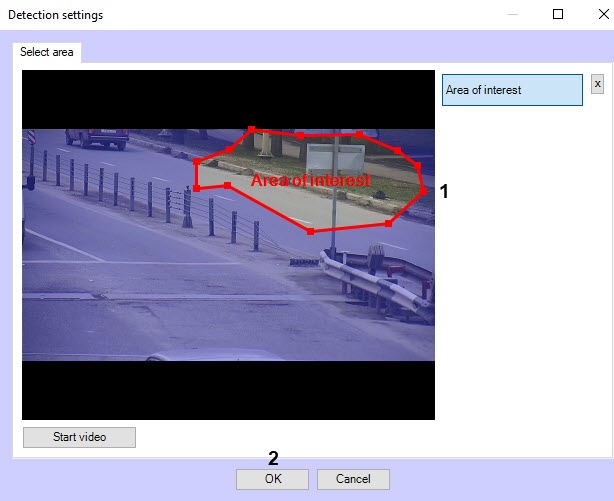

    3. On the captured video image (3), set the anchor points of the area, the situation in which you want to analyze, by sequentially clicking the left mouse button. Only one area can be added. If you try to add a second area, the first area will be deleted. After adding an area, the rest of the video image will be darkened.

    4. Click the OK button (2).

      Note

      Specifying the Area of interest is a mandatory requirement for the detection module operation.

      To remove the area, click the button next to the Area of interest button.

  12. Click the Apply button (10).

Configuring the Fire detection and Smoke detection modules is complete.
