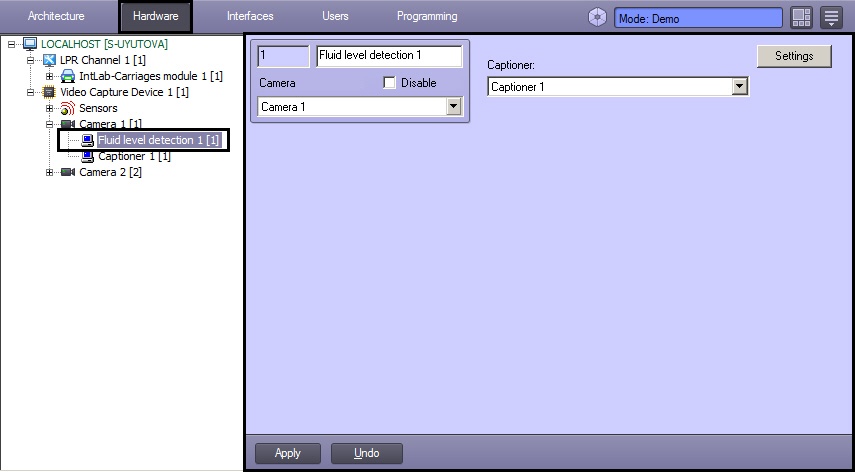

The Fluid level detection module is configured on the Fluid level detection object settings panel. This object is created on the basis of the Camera object on the Hardware tab of the System settings window.

The Fluid level detection module is configured as follows:

  1. Go to the Fluid level detection object settings panel.

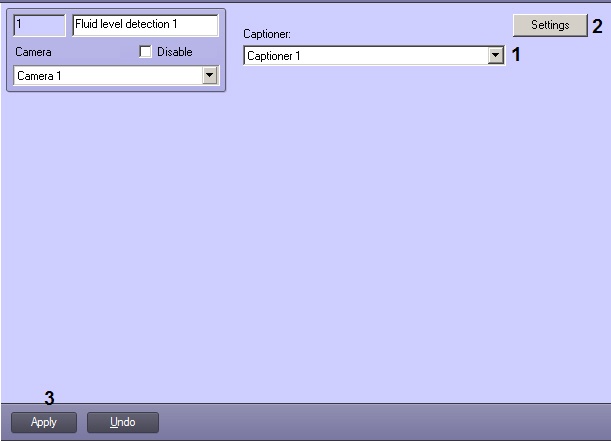

  2. In the Captioner drop-down list, select the Captioner object created on the basis of the same Camera object as the Fluid level detection object (1). This captioner will be used to overlay captions of fluid level onto the camera video image in the Video surveillance monitor.

    Note

    For more info on how to create and configure the Captioner and Monitor objects, refer to the Intellect software. Administrator's Guide. For details on operation of these objects, refer to Intellect software. Operator's Guide. The most relevant versions of these documents are available in the AxxonSoft documentation repository).

  3. Click the Settings button (2). The Detection settings dialog box opens.

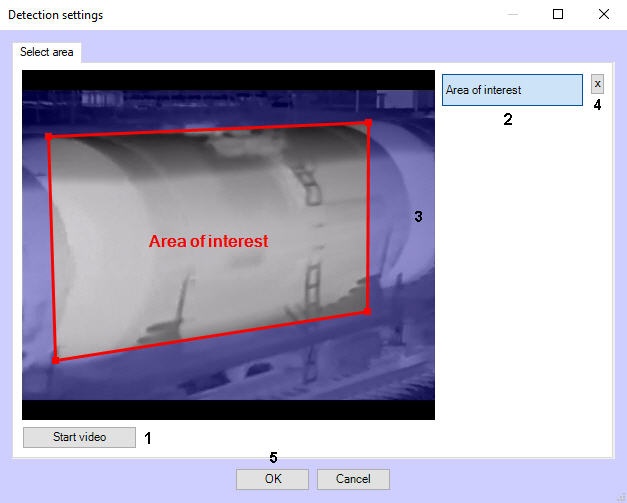

  4. Select the frame in this settings window to set the area of interest. For that, click the Start video button (1).
  5. Click the Area of interest button (2).

  6. Using the left mouse button, select the four corners of the area on the captured video image (3). Only one area may be so designated. Upon selection of the area, the remaining part of the video image will be dimmed.

    Note

    To remove a selected area, click the x button (4).

  7. Click the OK button (5).
  8. Click the Apply button on the Fluid level detection object settings panel to save the changes.

After the fluid level detection tool is configured, it can be assigned to the IntLab-Carriages module for joint operation with Auto Intellect. To do this, select the created and configured Fluid level detection object on the IntLab-Carriages module settings panel (see Setting up the IntLab module).
