Intellect Detector pack is installed as an extension to Intellect. Information about compatibility of the Intellect software versions and Intellect Detector pack is available at Obsolete. General information about product releases and versions compatibility.

To install Intellect Detector pack, do the following:

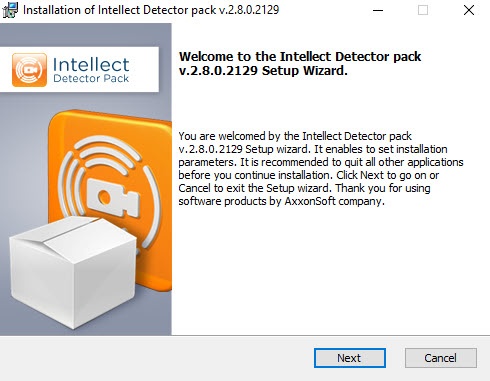

  1. In the root directory of the distribution package, run the setup.exe executable file.
  2. To continue the installation process, click the Next button.

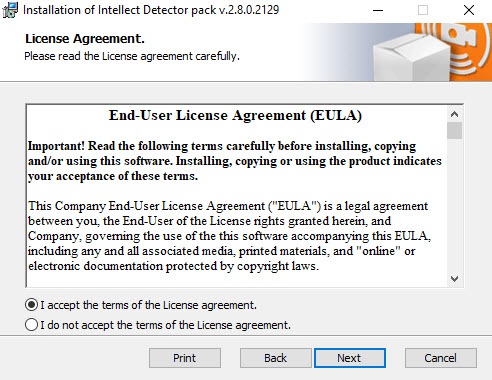

  3. Read the terms of the license agreement carefully. Then set the radio button to I accept the terms of the License agreement and click the Next button.

    Note

    Click the Print button to print the license agreement.

  4. A window will be displayed in which you need to select the database MS SQL Server and configure the connection settings.

  5. Select the database MS SQL Server from the database Server drop-down list.

    Note

    To use the SQL server installed on this (local) computer, select (local)\SQLEXPRESS (set as default).


  6. Set the authentication parameters that will be used by Intellect Detector pack when connecting to the SQL server.

    Authentication methodsWindows credentials SQL server authentication using the following username and password (Recommended)
    Use cases

    		The SQL server from Intellect Detector pack distribution package (or from a third-party distribution package) and Intellect Detector pack are installed on the same computer

    The SQL server from Intellect Detector pack distribution package and Intellect Detector pack are installed on the same computer. Connection to the SQL server with the specified username (login) and password can be made from any remote computer that is in the same TCP/IP network domain as the computer on which the SQL server is being installed

    The SQL server and Intellect Detector pack are installed on different computers that are connected via TCP/IP network and located in the same network domain. In Windows OS on the computer with installed MS SQL server, an account should be created for the user currently authorized in Windows OS on the computer on which Intellect Detector pack is being installedThe SQL server from Intellect Detector pack distribution package and Intellect Detector pack are installed on different computers that are connected via TCP/IP network and located in the same network domain. The username (login) and password should match the username (login) and password used to access the SQL server
    Full-featured SQL server (installed optionally) and Intellect Detector pack are installed on different computers that are connected via TCP/IP network and located in the same network domain. An account should be created on the remote SQL server for the user currently authorized in Windows OS on the computer on which Intellect Detector pack is being installed

    Full-featured SQL server (installed optionally) and Intellect Detector pack are installed on the same or different computers that are connected via TCP/IP network and located in the same network domain. The username (login) and password should match the username (login) and password used to access the SQL server

    Attention!

    If Intellect Detector pack is installed by the computer Administrator, and Windows credentials are used for the SQL server authentication, access to the database by any other user will not be possible without additional configuration of the idb.exe utility and knowledge of the Administrator login and password. It is strongly not recommended to use this method of the SQL server authentication.


  7. Click the Next button to continue the installation process.

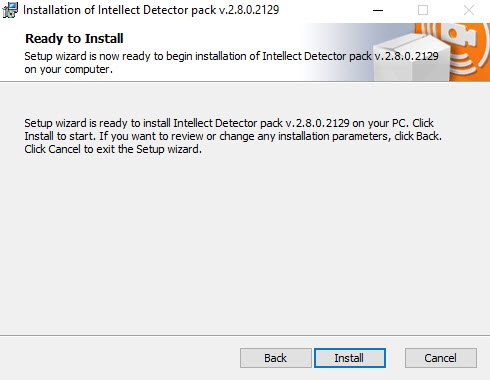

  8. Click the Install button in the window that opens.

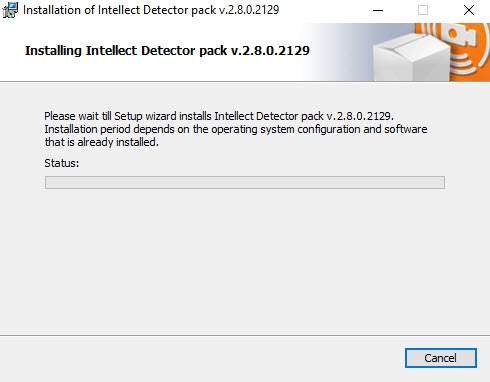

  9. The necessary components of Intellect Detector pack will be copied to the computer hard drive.

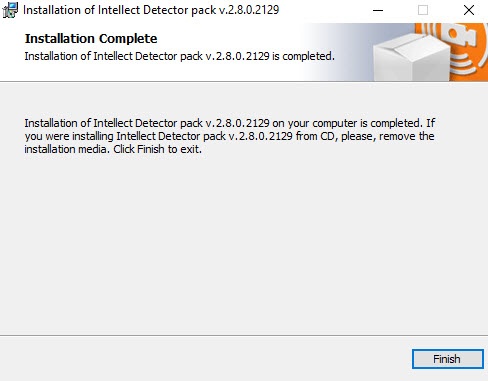

  10. After all Intellect Detector pack components are successfully copied, the message about the completion of the installation process will be displayed. Click the Finish button.

The Intellect Detector pack installation is complete.

Note

When installing Intellect Detector pack, the files necessary for HDDL operation are located in the C:\Program Files (x86)\Common Files\AxxonSoft\DetectorPack\NeuroSDK\hddl\ folder. The HDDL_INSTALL_DIR system variable is created, in which you should specify the path to the folder with the files for HDDL operation. By default, the value of this variable is equal to the standard path, where these files are installed. This also applies to the case when Intellect and Axxon Next are installed together.
