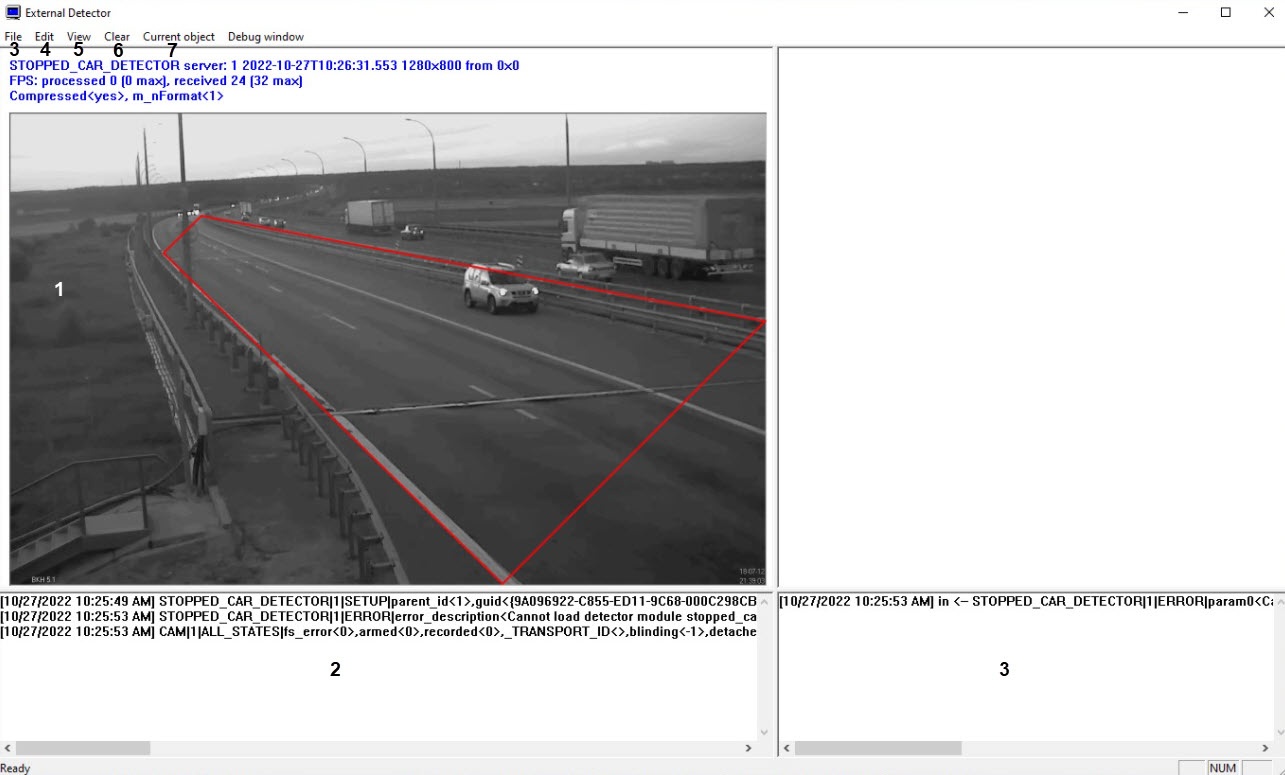

The debug window contains the interface components described in the following table.

No

Name

Description

1

Preview area

Element is designed for displaying the detection area above the video image. Besides detection area the specific detection settings are displayed:

  • the person size for queue length detection and people counter detection;
  • detection zones for stopped vehicle detection.

2

Area of Events viewing from detectors

Events from detectors registered in the system are displayed in this area.

3

Area of system events viewing

All system events except events from detectors are displayed in this area.

4

File menu

Access to the Exit function.

5

Edit menu

Access to the operations with text.

6

View menu

Access to the function of displaying and hiding the status bar.

7

Clear button

Clear areas of events viewing.

8

Current object menu

Selection of a detector settings of which are displayed in the preview area. The detector selection have an impact on the camera from which the video stream is used for displaying in the preview window.
