When detecting a barcode or a QR code in the area of interest, the result of the Barcode detection operation are displayed in the Monitor interface window using the Captioner object.

You can search by detected barcodes using the Search by captions interface object.

When detecting a barcode or a QR code in the area of interest, the Event viewer receives the corresponding message Barcode detected from the Barcode detection object. The barcode and QR code data is displayed in the Add. info column.

For more information on working with the Event viewer interface window, see Axxon PSIM. Operator's Guide. You can find the current version of this document in AxxonSoft documentation repository.

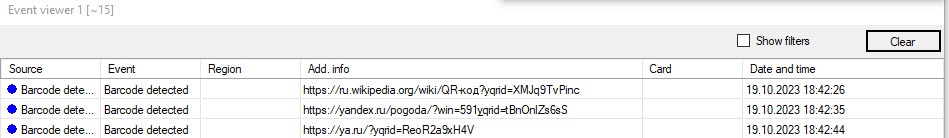

Example of displaying a Barcode detected event on the screen:
