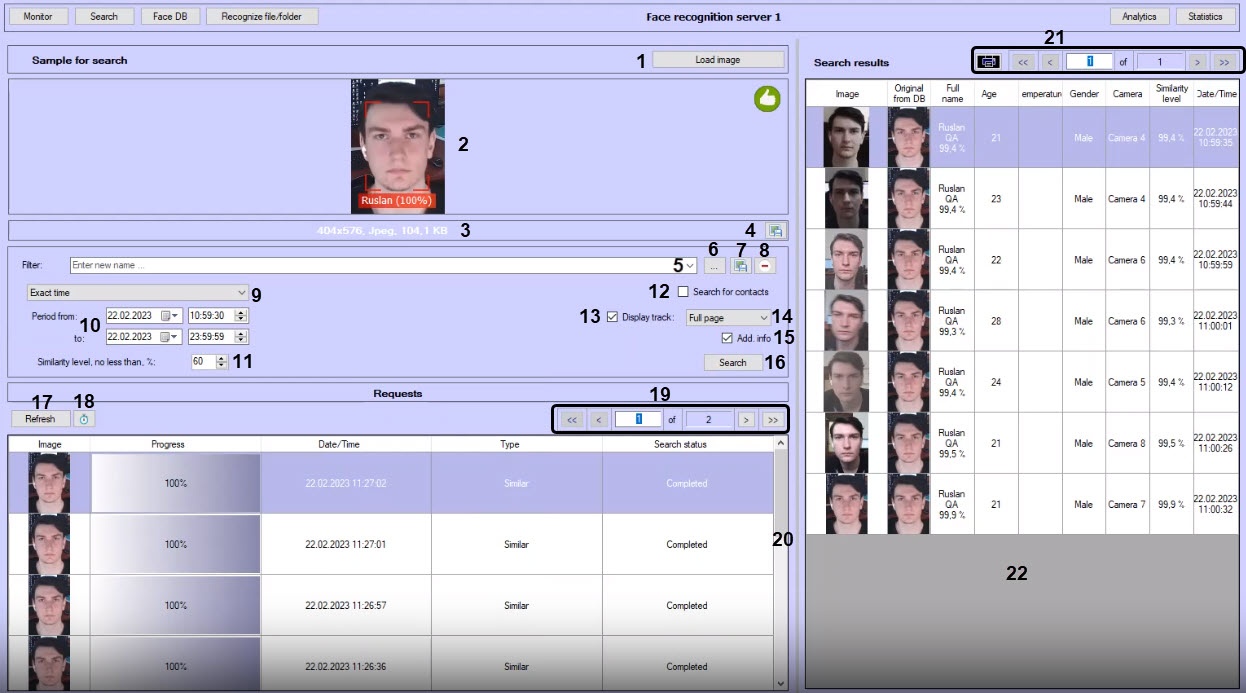

The following figure shows the Face search window interface:
The elements of the Face search window interface are described in the following table.
Element number | Comment |
|---|---|
1 | The Load image button (image loading for search) |
| 2 | The area for displaying the loaded image |
| 3 | The loaded image parameters |
| 4 | The button for saving the image |
| 5 | The field for entering a new filter name or selecting a previously saved filter |
| 6 | The field for specifying the filter |
| 7 | The button for saving the specified filter |
| 8 | The button for deleting the selected filter |
| 9 | The list for selecting the search period type |
| 10 | The elements for setting the time interval for face search. They depend on the selected search period type |
| 11 | The field for entering the minimum similarity level |
| 12 | The Search for contacts checkbox for searching people who have been in contact with the specified person within the specified time period |
13 | The Display track checkbox for displaying the movement (track) of a person on the map in the form of arrows |
| 14 | The list of methods to display a track of a person on the map |
| 15 | The Add. info checkbox for displaying additional information about a person near each arrow that shows the movement track of a person |
| 16 | The Search button for searching for the selected face |
| 17 | The Refresh button for refreshing the list of search requests |
| 18 | The button for setting the start date and end date and the time interval for search results displaying |
| 19 | The elements for navigating through the search requests |
| 20 | The area for displaying the search requests. The following columns are displayed:
|
| 21 | The elements for navigation through the search results |
| 22 | The area for displaying the search results. The following columns are displayed:
|
