Control panel of the PTZ camera

In the AxxonNet mobile client you can control the PTZ camera. To do this, in the live video mode of the corresponding camera, click the button in the upper right corner.

As a result, the PTZ control panel will be displayed in the lower part of the screen.

Controlling the PTZ camera

The current mode of the PTZ camera control is displayed at the top of the screen.

Click the current mode of control to select other modes of the PTZ camera control:

  • continuous—continuous camera movement.
  • relative—relative camera movement.
  • absolute—absolute camera movement.

To move the camera, you can use the gray circle or square (depending on the mode of controlling) which emulates the joystick movement. You can also move the camera using the button. After clicking the button, it is necessary to specify the point in any area of the video image to position the camera lens there.

Changing the scale, focus, IRIS adjustment (manual iris).

Click the  button to zoom in/out the image, change the focus, or adjust IRIS (manual iris).

Configure the required settings using the displayed sliders.

Note

The number of the available sliders depends on the camera.

Configuring the presets

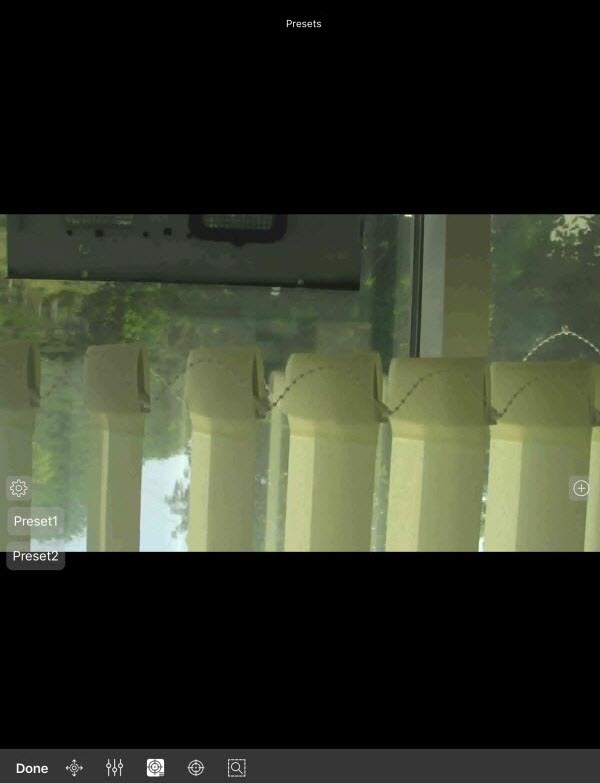

To go to the preset list, click the button. As a result, the presets will be displayed in the left part of the screen if they exist.

To add a new preset, click the  button. Specify the preset name in the dialog box and click the Ok button.

To remove the presets, click the  button. As a result, the presets will become red, and the cross icons will appear next to them. Click the presets to remove them. If the button is clicked again, the preset list will go back to the selection mode.

Focusing on the specific area

You can focus on the specific area of the video image. To do this, click the button and specify the size of the appeared frame. Click the  button to expand this area to fit the surveillance window. To cancel, click the  button.

Finishing working with the PTZ camera

To finish working with the PTZ camera, click the button. As a result, the PTZ control panel will be hidden.
