Overview

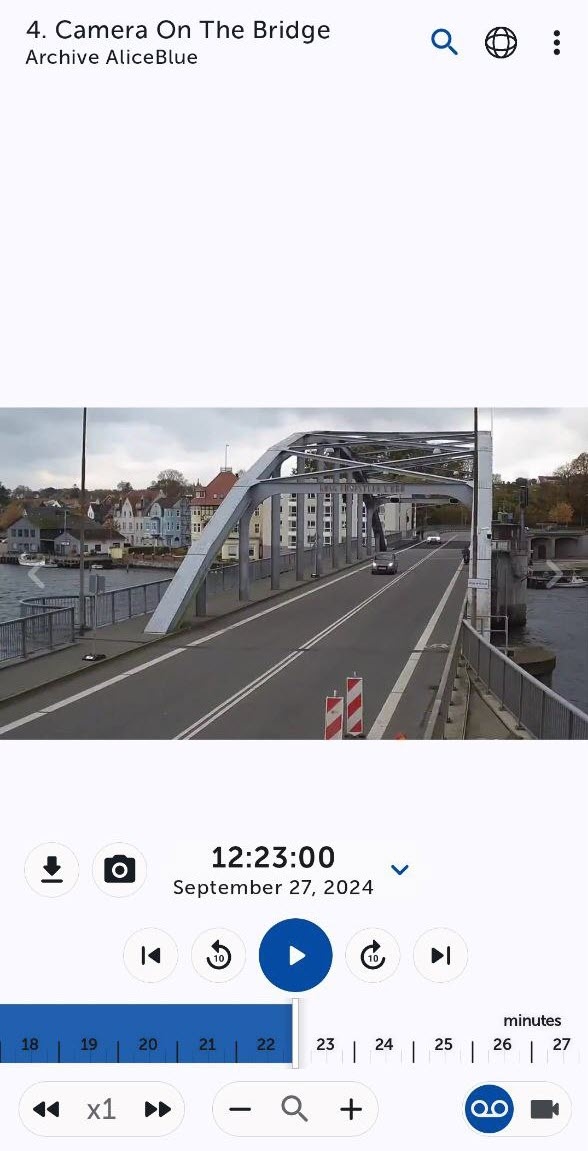

To go to archive, set the switch to the
position in the live video mode. As a result, a window for viewing the video archive opens:
Attention!

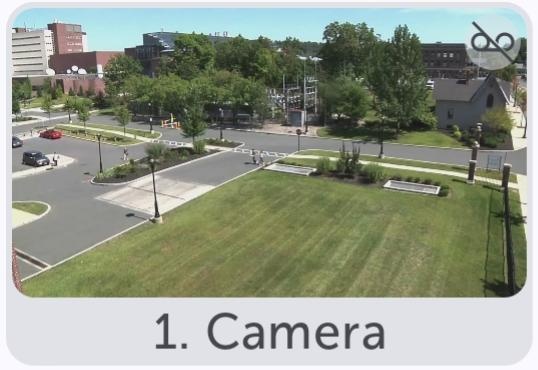

Display of cameras in the mobile app depends on the settings of the user role. If you select the Live in Armed mode and Live access levels to a camera for the user role (see Roles) in Axxon One, the corresponding cameras have an icon indicating that there is no access to archive.
Viewing video and events in the archive mode won't be available.
Archive video playback settings

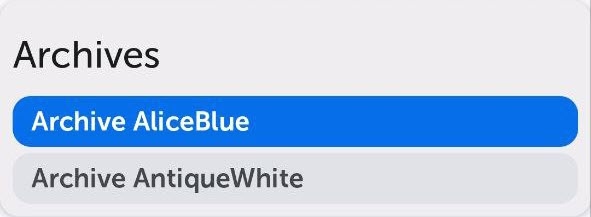

If the video from the camera is recorded to several archives, a window opens in which you can select the required archive for viewing:

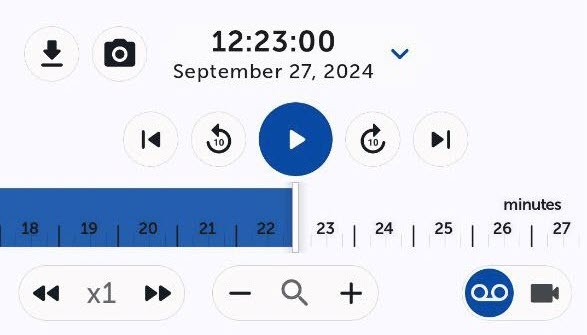

Archive video controls
You can control the playback using the following buttons:
—pause,
—play.
Attention!
If you set the Log collection checkbox in the app settings (see Configuring debugging in the AxxonNet mobile client on Android OS), and the camera has MJPEG playback format, archive video won't be displayed when you connect to the Axxon PSIM Server. To view archive video, do the following:
- either broadcast the camera via the RTSP Server (see Configuring the RTSP Server module), keeping the Log collection checkbox set;
- or clear the Log collection checkbox.
You can navigate through the archive using the timeline at the bottom of the screen. Do it by swiping left and right on the timeline.
You can change the timeline scale by using the
buttons or by pinching/stretching the timeline with two fingers. You can also zoom in on the timeline by double-tapping the timeline.
You can speed up, slow down, and also change the direction (forward/reverse) of playback using the
buttons. The current playback speed is displayed between the buttons. During a reverse playback, a - sign is displayed before the speed rate.
Note
When you connect to the Axxon PSIM Server:
- For MJPEG format, you can change the speed of the forward playback using the buttons. You cannot playback MJPEG format in the reverse direction.
- For RTSP format, you cannot change the speed of the playback and playback direction.

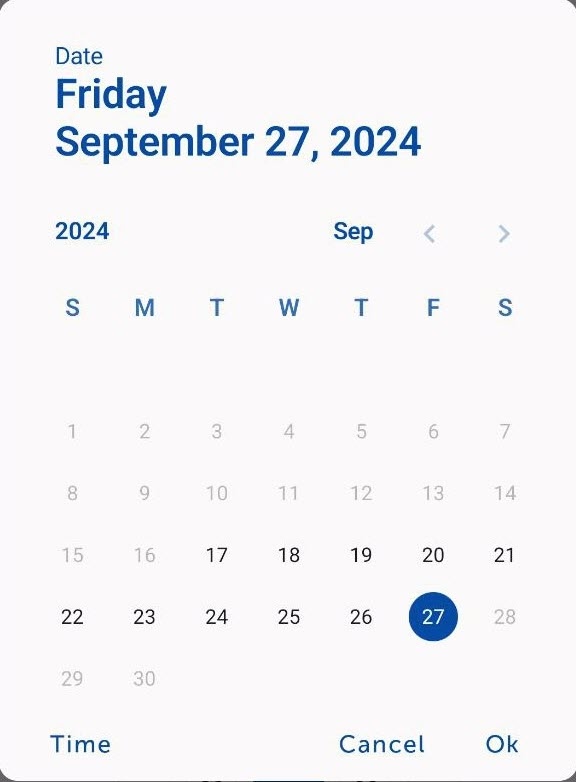

To select the date and time for viewing the archive, select the date and time. A window opens in which you can select the date:
Note
In the archive mode, you can select only the days on which the archive was recorded. The days on which the archive wasn't recorded are displayed in light gray color and aren't available for selection.

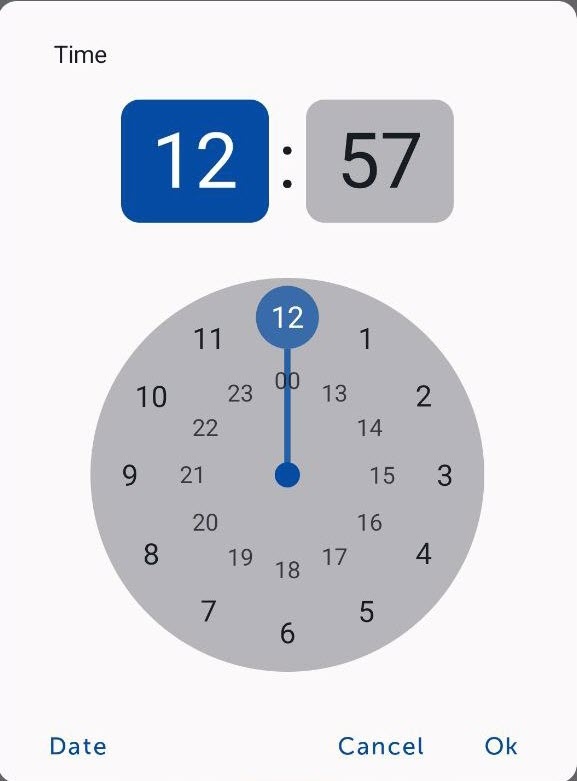

To choose the time, select Time:
To save the changes and go to the required time, select the OK button.
Note
If there is no archive record for the specified time, you are positioned to the nearest moment in the archive towards the increase in time.
When you go to the next camera using the
and
buttons, the time in the archive is set to the same time that was set on the previous camera.
To go to the first record of the archive, select
. To go to the last record of the archive, select
.
To go 10 seconds back, select
. To go 10 seconds forward, select
.
To return to viewing live video, set the switch to the
position (see Viewing live video in the AxxonNet mobile client on Android OS).
If the video is recorded with audio, you can turn it on using the
button, and turn it off using the
button.
Note
The audio control button can be hidden if the video has not started playing.
Archive video settings menu

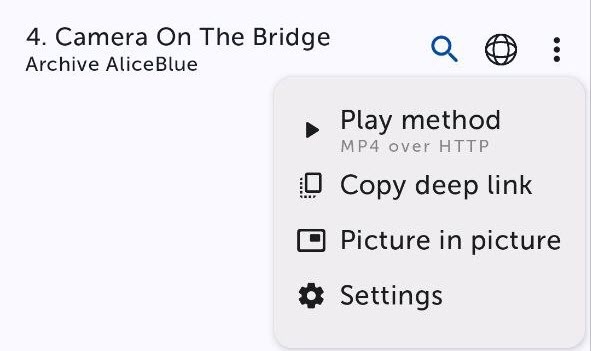

To open the settings menu, select the
button in the upper right corner of the screen. The window with settings opens.
By default, video has the MP4 over HTTP play method. To change the method:

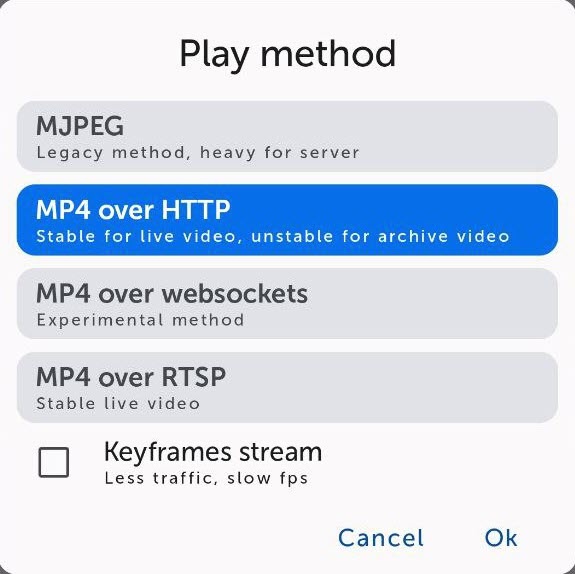

- Select the Play method menu item. In the window that opens, select any of the methods:
- You can also set the Keyframes stream checkbox.
Note
The checkbox is displayed only if you select the MP4 over HTTP or MP4 over websockets method.
- Select OK to save the changes.
If you want to open a camera on another device on which the AxxonNet mobile Client is installed, select Copy deep link.

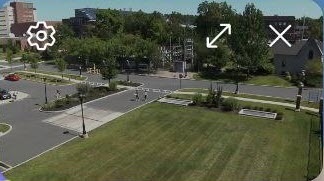

If necessary, you can open a video in the picture-in-picture mode. This mode allows you to view video in a special mini player even when another app is active on the screen. To activate the mode:
- Select Picture in picture. As a result, video opens in the mini player. You can drag it to any part of the screen.
- To exit the picture-in-picture mode, tap the video. Control buttons will be displayed:
to return to the full screen mode of the app. The window with the archive that you are viewing opens.
to close the mini player and the app.
to open the Picture-in-picture setting of the mobile device. By default, the Allow permission checkbox is set. It allows creating a picture-in-picture window. If necessary, you can clear this checkbox.
Note
If you double-tap the mini player, the archive that you are viewing opens in the full screen mode.

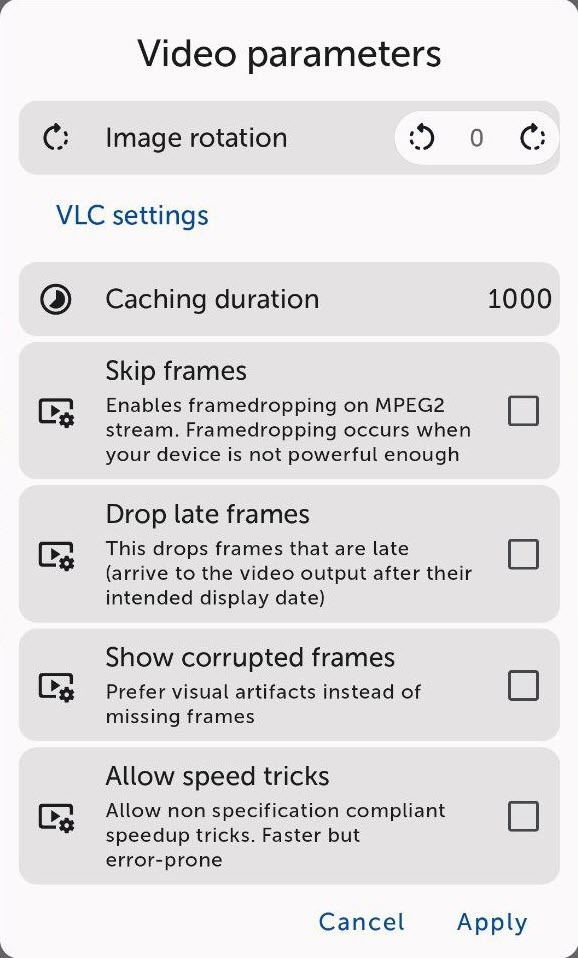

To rotate the camera image, select the Settings menu item. In the window that opens, in the Image rotation parameter, select the
button to rotate the image clockwise. Select the
button to rotate the image counterclockwise. You can rotate the image 90, 180, or 270 degrees. You can also select VLC settings in the window (see Configuring video in the AxxonNet mobile client on Android OS).

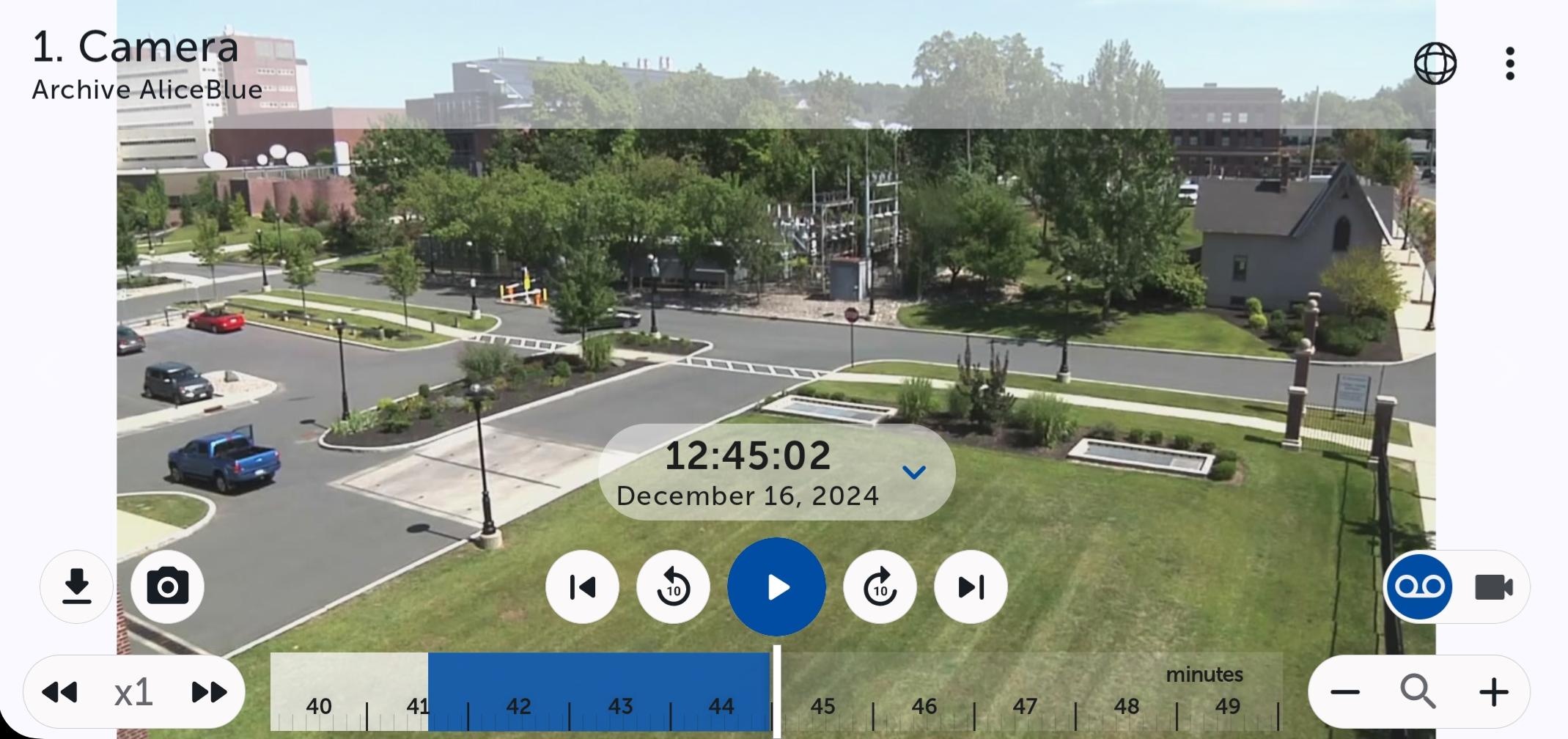

Horizontal display
On Android mobile devices, you can view video horizontally. To change the display, enable the ability to change the screen orientation in the device settings and rotate the device.
In horizontal display, the control buttons hide automatically with a short delay and reappear when you tap the screen.
