Let us consider the following situation: electricity has turned off and the UPS began to work in battery mode (ID Code = 2000), and after a time electrical supply was restored (ID Code = 1003).

In this case to configure events notifying do the following:

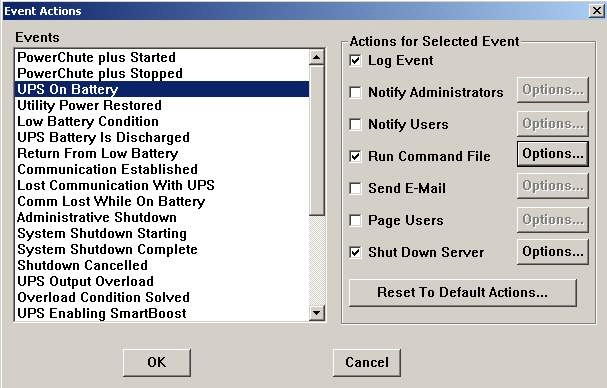

  1. In the list of events, select the event UPS On Battery and, for this event, select the Run Command File check box.
  2. To the right of Run Command File, click the Options... button.
  3. In the dialog box that opens, indicate the full path to the StateUPS utility that you want to be started when the event occurs.

    This path should be surrounded by double quotation marks (one at the beginning of the path and one at the end). Leave a space and then indicate the ID code; for the UPS On Battery event, the ID code is 2000.
  4. Similar actions for the Utility Power Restored event are shown in the following figures.

You should also remember that after utility power is restored, the UPS does not always generate the Utility Power Restored event; sometimes, it generates the UPS Enabling SmartBoost or UPS Enabling SmartTrim events. In order to not "miss" the moment at which utility power is restored, it is advisable to also handle the UPS Enabling SmartBoost and UPS Enabling SmartTrim events.

Each time the StateUPS utility is called, a log file is created in the <Axxon PSIM installation>\Vhost\UPS folder with a name of the following format:

upslog_<state><date><time>.log
