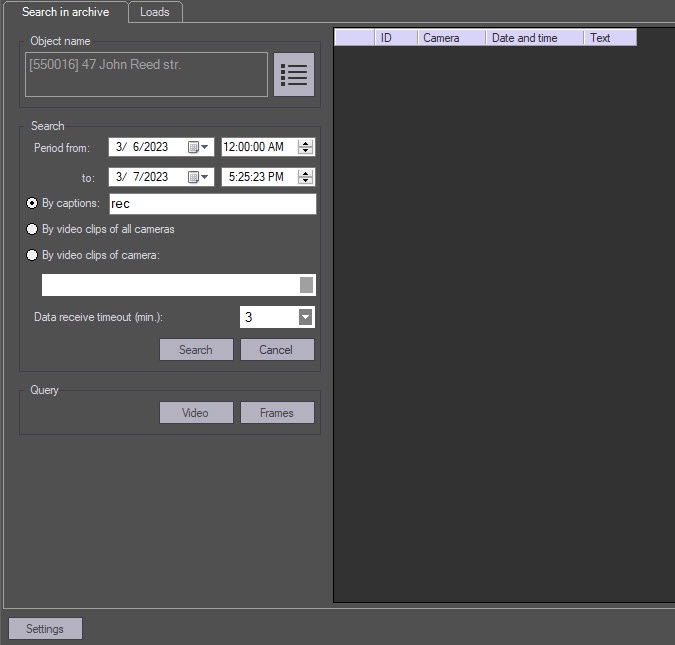

To send a request to a video archive by subtitles (By captions mode), follow these steps:

  1. Open the Search in archive component.
  2. Select an object as follows:
    1. Click  in the Object name group.

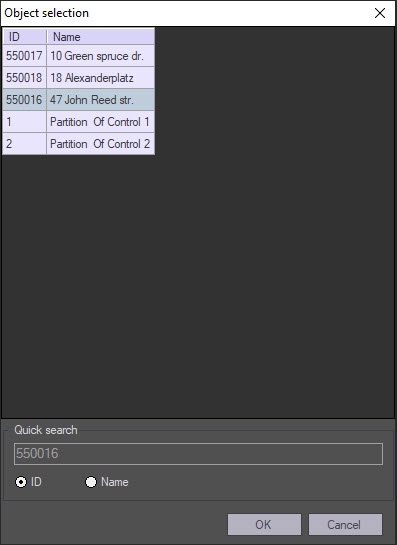

    2. Select the object in the Object selection box.
    3. For quick search by object identification number, set the switch in the bottom of the box to ID and enter the number in the Quick search field. The match, if found, is displayed in the Quick search field while the corresponding object is automatically selected in the list.
    4. For quick search by object name, set the switch in the bottom of the box to Name and enter part or full name in the Quick search field. The match, if found, is displayed in the Quick search field while the corresponding object is automatically selected in the list.
  3. Make a request for archive search by using the following parameters:
    1. In the Period from: field, set the date and time for the start of the search period.
    2. In the to: field, set the date and time for the end of the search period.
    3. Click the By captions option button.

    4. Enter any keyword (available only if you click By captions).

      Note

      • The By captions field is auto-filled. Each keyword entered in this field will be stored in the database and will be automatically inserted into the field upon retyping.
      • To use the * symbol  while searching by titles to search for any number of any characters, for example: card*.
  4. Set the waiting time by using the Data receive timeout (min.) field.

  5. Click Search.

    Note

    You can cancel the search at any moment by clicking Cancel.

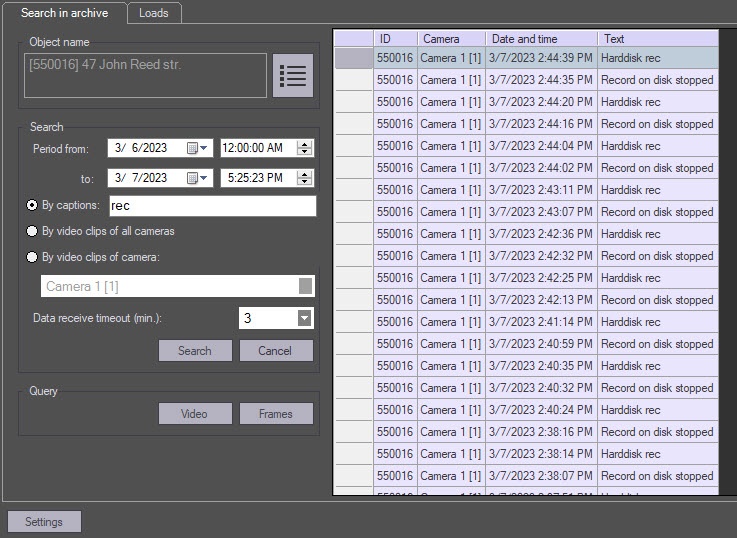

  6. If the search completes successfully, the search result is displayed as a list of lines. The number of lines in that list is limited to 500.

You can also make a request to the archive based on received data (see Request for video frames from an object).

Attention!

This data is requested from Axxon PSIM's database at the object. If you want to change how long this data is stored, set the Events archive length parameter at the Security zone section at the Programming tab.
