The Role object

A role is intended for assigning a group of users individual rights and permissions for administration, management and/or monitoring of individual components of Axxon Next.
To register a new role, perform the following:

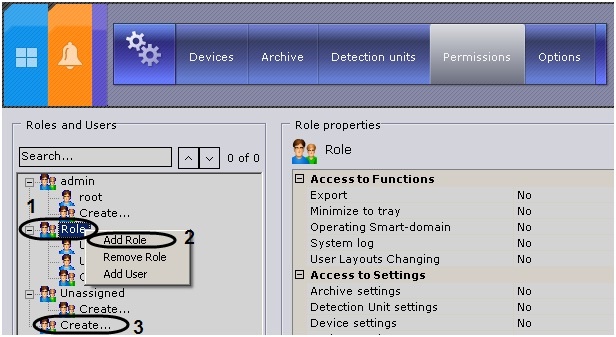

1. Select a role in the user tree (1).
2. Bring up the context menu of the user tree by right-clicking the mouse.

3. Select Add role (2).



   Note

   To register a new role, you can also click Create (3)



   A new role will then appear in the user tree, and the properties of that role will appear on the right.

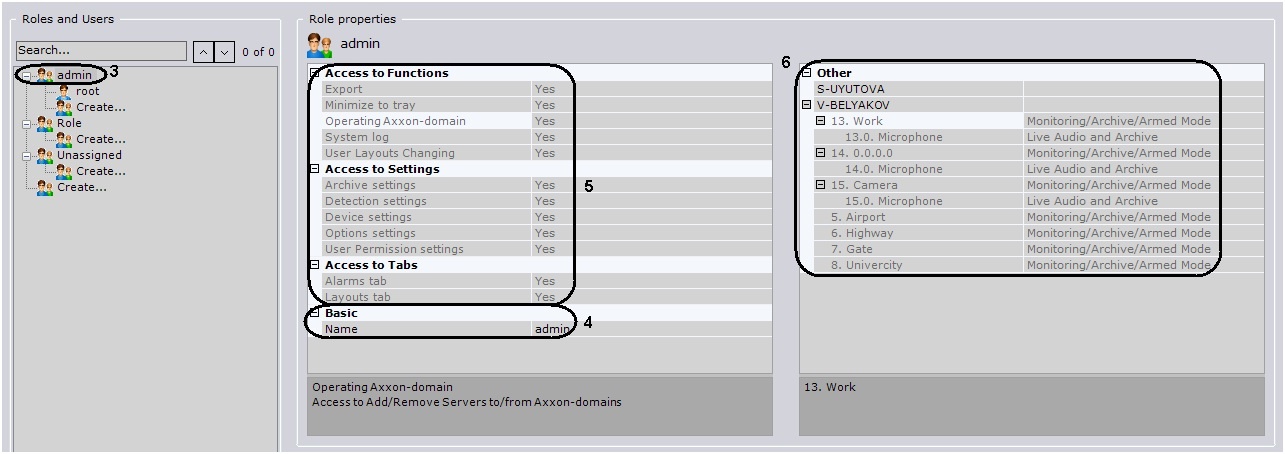

4. Assign a name for the role in the role properties (4).
5. Select Yes for the components for which access needs to be granted (5).

6. Select the appropriate permissions to devices (6).

   Device	Access permissions	Description
   Video camera	No access	Unable to view image from the video camera. Archive is inaccessible.
   	Monitoring in Armed mode	The image from the video camera can be viewed only when the video camera is armed. Archive is inaccessible. The user is unable to arm/disarm the video camera.
   	Monitoring	The user can view the image from the video camera. Archive is inaccessible.
   	Monitoring and Archive	The user can view the image from the video camera. Archive is accessible.
   	Monitoring/Archive/Armed mode	All functions are accessible.
   Microphone	No access	The user is unable to listen to live sound from the video camera. The user is unable to listen to sound recordings from the archive.
   	Live Audio	The user is able to listen to live sound from the video camera (the microphone must be turned on). The user is unable to listen to sound recordings from the archive.
   	Live Audio and Archive	All functions are accessible
   Telemetry	No access	The user cannot control pan/tilt/zoom
   	Control	The user can control pan/tilt/zoom

7. Click the Apply button to save the role.

The new role has now been created.
To delete a role, perform the following:

1. In the user tree, select the role that you want to delete (1).

2. Bring up the context menu of the user tree by right-clicking the mouse.
3. Select Delete role (2).
4. Click Apply to save the changes.

The role has now been deleted. All users that were assigned the specified role will now be placed in the Unassigned group.
