Adding video cameras

You can add cameras to the map in one of three ways:

1. By using the viewing tile context menu.
2. By using the map context menu.
3. By dragging a video camera icon from the video camera panel to the map.

To add a video camera to the map by using the viewing tile context menu:

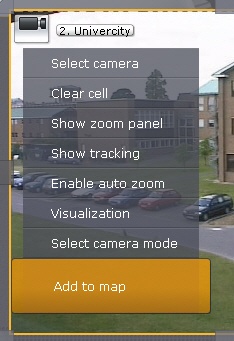

1. In the viewing tile context menu, select Add to map.

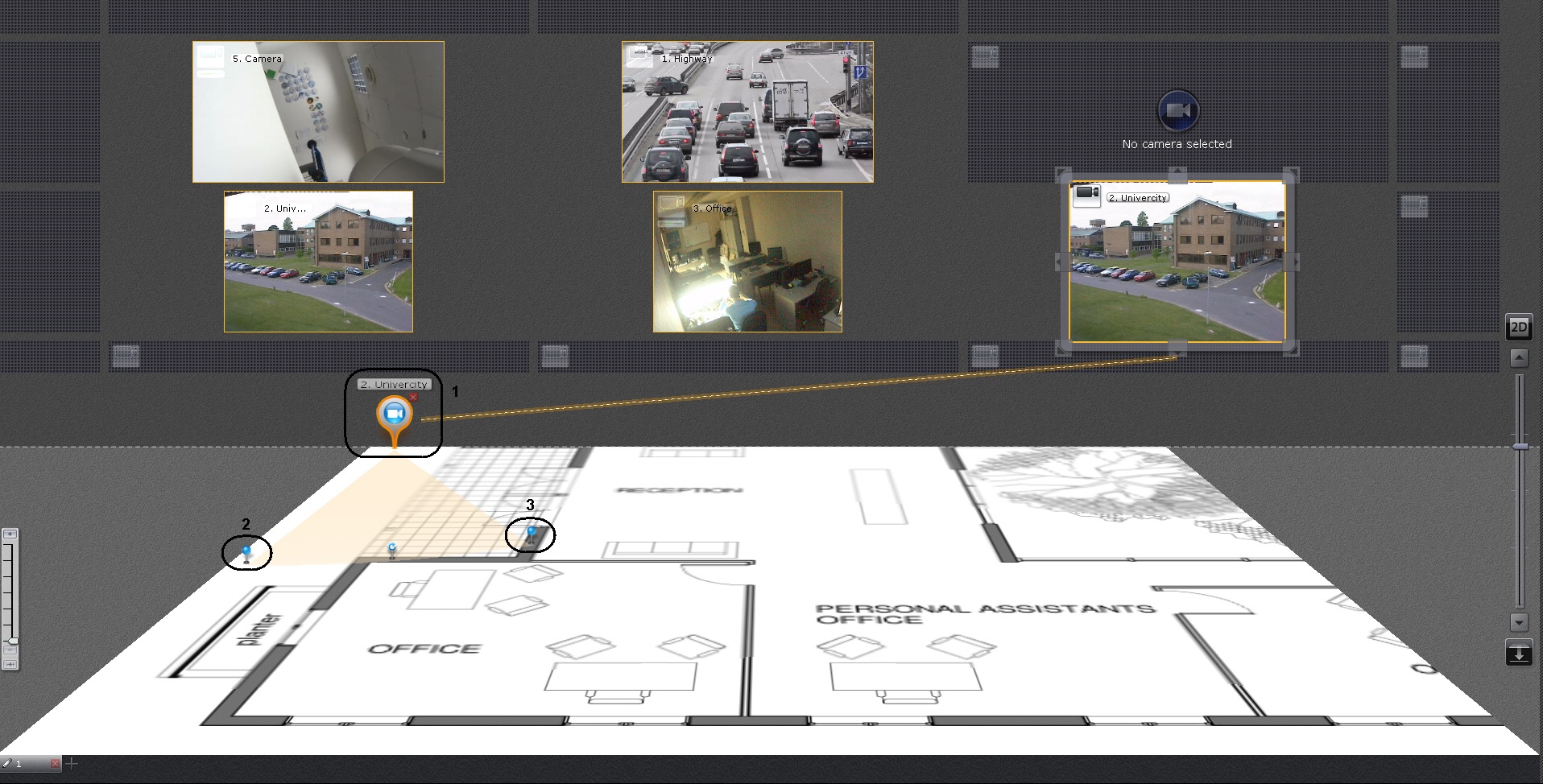

2. Drag the video camera's icon to the place on the map that represents the camera's actual location at the site (1).


3. On the map, use the corner nodes to adjust the video camera's field of view to match the actual situation at the site (2, 3).

   Important!

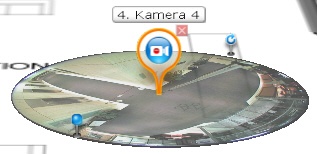

   For ceiling-mounted fisheye cameras (see Configuring fisheye cameras), you are advised to set a 360° field of view. If you do so, the video from the camera will be directly available in the specified area:



The video camera has now been added.

To add a video camera by using the map context menu:

1. Right-click to open the map context menu and select Add video camera.

2. Select the necessary video camera in the displayed list by using one of the following methods:
1. If the necessary video camera is included in a group, you must first select the group (the group may also contain subgroups), then select the video camera.
2. If the necessary video camera is not included in one of the groups, you must select the list of all video cameras that follows the list of groups.

3. Repeat steps 2 and 3 of the instructions for adding a video camera to the map by using the viewing tile context menu.

The video camera has now been added.

There is another way of adding a video camera to the map:

1. In the video camera panel, left-click a video camera's icon. Holding down the mouse, drag it on to the map.
2. Repeat steps 2 through 4 of the instructions for adding a video camera to the map by using the viewing tile context menu.

The video camera has now been added.
