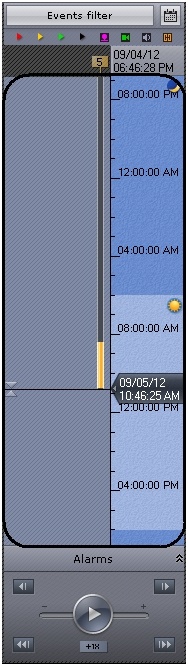

The timeline is a graphical representation of the time axis of the archive and is located in the middle part of the navigation panel.

The timeline contains indicators of the presence of recordings, or tracks.

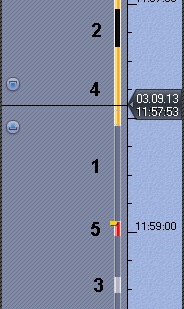

Tracks are marked in different colors depending on the alarm status or detection tool activation: Display of any particular alarm event in the list is determined by filter settings (see the section titled The Alarm Events Filter).

Condition

Color of the alarm period on the track

Archive absent (1)

Dark Gray

No signal from the video camera (2)Black

Archive (3)

White

Archive present, detection tool activated (no alarm) (4)

Orange

Archive present, alarm active (5)

Red

Note

The colors of alarm periods overlap when they coincide in time.

At the moment when an alarm is assigned a status (critical, non-critical, false, or unclassified), a flag is added to the track. A flag is added to the point on the timeline when the alarm began.

The flag is colored according to the alarm status:

  1. Green – false alarm
  2. Yellow – non-critical alarm
  3. Red – critical alarm
  4. Gray – unclassified alarm

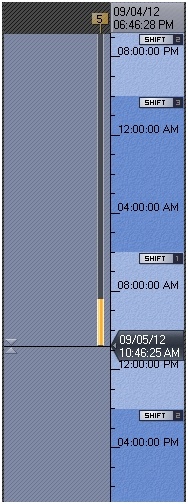

The timeline's background can be displayed in two styles, depending on settings (see the section titled Configuring the timeline):

  1. Day/Night
  2. Shift work

You can scroll and zoom the timeline using the mouse.

To scroll the timeline, move the cursor on its background (displayed in the Day/Night or Shift work style) vertically while holding down the left mouse button. To change the scale of the timeline, right-click the timeline's background (Day/Night or Shift work) and, while holding down the right mouse button, move the cursor down to zoom out or up to zoom in.

Note

You can also scroll and zoom the timeline using the position selection panel  (see the section The Position Selection Panel).

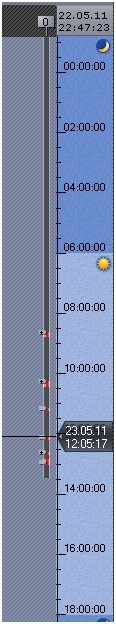

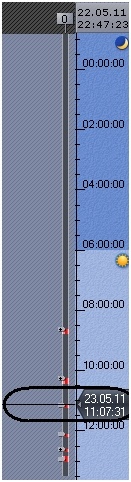

The timeline lets you select at which moment to start playback of a recording in the viewing tile. To choose at which moment to begin playback, you can either left-click the indicator and hold it down while dragging it to the desired position, or just left-click the left portion of the timeline.

If there is no recording in the selected position, the indicator will automatically move to the position corresponding to the nearest recording.

Note

You can also set a timeline indicator in the desired position by indicating the exact date and time (see the section titled Setting the timeline indicator in the desired position.).

You can position the indicator with the help of the alarms list (see the section The alarms List).
