Events Filter

The Events Filter component allows selecting the type of events that are displayed on the archive navigation panel.

To select an event type:

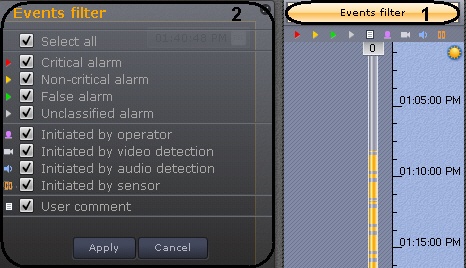

1. Click the Events filter button (1). The Events filter window will then be displayed (2).

2. Select the check boxes for the types of alarms which should be displayed on the archive navigation panel, according to their status:

   1. Critical alarm
   2. Non-critical alarm
   3. False alarm

   4. Unclassified alarm

      Note.

      If you clear the check box for a certain type of alarm, this type of alarm and the corresponding track are no longer displayed on the timeline
3. Select the check boxes for the types of alarms which should be displayed on the archive navigation panel, according to the cause of their initiation:

   1. Initiated by operator
   2. Initiated by video detection tool (basic, situation analysis, or embedded)
   3. Initiated by audio detection tool (basic, situation analysis, or embedded)

   4. Initiated by sensor

   Note.

   By default, all check boxes are already selected.

   Attention

   To display alarms on the timeline, select at least one type of alarm event and one initiator

4. Select the check box to display operator comments.
5. Click the Apply button.

Note.

To close the window without saving changes, click Cancel or .

Selection of events is now complete.

Events of the selected type are now displayed on the timeline  (see the section titled The Timeline) and in the events list (see the section titled Events List).
